Smart-UPS On-Line

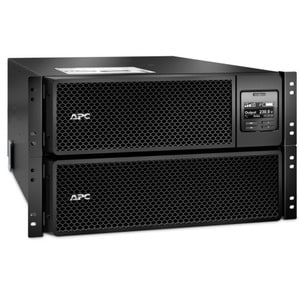

APC Smart-UPS SRT 8000VA RM 230V

APCSmart-UPS On-Line,8000 Watts /8000 VA,Input230V, 400V 3PH /Output230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6U

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card

Product Overview

SRT8KRMXLI Features

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance



Smart-UPS On-Line Features & Benefits
Availability
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
Network manageable
Provides remote power management of the UPS over the network.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
SmartSlot
Customize UPS capabilities with management cards.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial connectivity
Provides management of the UPS via a serial port.
Adaptability
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Serviceability
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Protection
Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.
Cold-start capable
Provides temporary battery power when the utility power is out.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 16 Minute
Brand Name: APC
Form Factor: Rack-mountable
Load Capacity (VA): 8000 VA
Load Capacity (Watt): 8000 W
Product Family: Smart-UPS On-Line
Product Type: Dual Conversion Online UPS
Rack Height: 6U
Receptacles: 1 x Hard Wire 3-wire (H N + G)
Receptacles: 3 x IEC Jumper
Receptacles: 4 x IEC 60320 C19
Receptacles: 6 x IEC 60320 C13
Battery Information
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
16 Minute
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Sealed Lead Acid
Hot Swappable:
Yes
Maximum Battery Recharge Time:
1.50 Hour
Number of Batteries:
2
Controls/Indicators
Status Indicators:
LED Indicators
Environmental Conditions
Sound Emission:
55 dB(A)
Temperature:
40°C
Thermal Dissipation:
1497 BTU/h
General Information
Brand Name:
APC
Manufacturer Part Number:
SRT8KRMXLI
Manufacturer Website Address:
http://www.apc.com
Manufacturer:
American Power Conversion Corp
Marketing Information:
A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Product Line:
Smart-UPS On-Line
Product Name:
Smart-UPS SRT 8000VA RM 230V
Product Type:
Dual Conversion Online UPS
Interfaces/Ports
Network (RJ-45):
Yes
Total Number of Expansion Slots:
1
USB:
Yes
Management
Alarm:
Battery Failure
Miscellaneous
Certifications & Standards:
CE
CE Mark
Green Compliance Certificate/Authority:
RoHS
Green Compliant:
Yes
Package Contents:
Smart-UPS SRT 8000VA RM 230V
CD with Software
Documentation CD
Installation Guide
Rack Mounting Brackets
Rack Mounting Hardware
Rails Rack Mount Bracket
Temperature Probe
USB Cable
Warranty Card
Physical Characteristics
Colour:
Black
Depth:
715 mm
Form Factor:
Rack-mountable
Height:
263 mm
Rack Height:
6U
Weight (Approximate):
111.82 kg
Width:
432 mm
Power Description
Circuit Breaker:
Yes
Input Voltage:
230 V AC
Load Capacity (VA):
8000 VA
Load Capacity (Watt):
8000 W
Output Voltage:
230 V AC
Surge Energy Rating:
480 J
Waveform Type:
Sine Wave
Technical Information
Bypass Switch:
Automatic & Manual

Internal
Emergency Power OFF:
Yes
Plug/Connector Type:
Hard Wire 3 wire (1PH+N+G)

Hard Wire 5-wire (3PH + N + G)
Protection Type:
Lightning

Spike

Surge
Receptacles:
1 x Hard Wire 3-wire (H N + G)

3 x IEC Jumper

4 x IEC 60320 C19

6 x IEC 60320 C13
Warranty
Limited Warranty:
3 Year
