Matrox M9128 Lp 1024mb Dp Pcie X16 M9128-e1024laf
No Longer Available

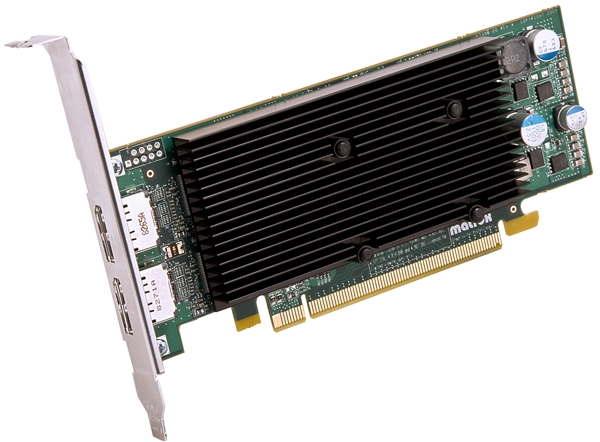

Matrox M9128 LP PCIe x16
The Matrox M9128 LP PCIe x16 Dualhead graphics card renders pristine image
quality on up to two DisplayPort monitors at resolutions up to 2560 x 1600 per
output. With 1 GB of memory and advanced desktop management features, the M9128
LP PCIe x16 card supports both independent or stretched desktop modes and is the
economical choice to drive business, industrial, and government applications
with extraordinary performance. Its low-profile form factor makes it easy to
integrate into a wide variety of systems, it offers optimal Windows Vista Aero
support (WDDM mode), and can be paired with another M-Series card for additional
monitor support.
High-resolution two DisplayPort monitor support
Up to 2560 x 1600 per output
Native PCI Express x16 performance
Maximum bandwidth to ensure best performance
1 GB of memory
For enhanced performance in demanding multi-monitor applications
Low-profile form factor
To fit in a wide variety of systems; includes bracket for full-height ATX form
factor
Multiple Operating System Support
Windows 7, Windows® Vista Aero (WDDM mode), Windows XP, Windows Server, and
Linux
Passive cooling and low power consumption
Fanless design eliminates noise and increases product reliability
M-Series multi-card support
Add multiple Matrox M-Series cards into the same system to drive more monitors*
Joined graphics card mode1
Insert two M-Series cards into the same system to drive even more monitors
across a stretched desktop
Wide enterprise flexibility
Unified driver package compatible with other Matrox products
Matrox PowerDesk software
Easily configure and manage program windows on multiple monitors
Global sales and technical support
Contact Matrox Graphics if you have any questions about the M9128 graphics card
Hardware Included
Matrox M9128 LP PCIe x16 graphics card
LP & ATX brackets
Software Included
Matrox display drivers for Microsoft Windows Vista, Windows XP and Windows 7
(also available at Matrox Graphics Driver Downloads
Matrox PowerDesk desktop management software
Part Number M9128-E1024LAF
Bus Type PCIe x16
Graphics Memory 1024MB
Card Form Factor (PCB / bracket) LP / ATX
Extra bracket in the box LP
Card Dimensions 6.6" (L) x 2.7" (H)
On-board Connectors 2 x DisplayPort
Adapters ?
Connector Adapters ?
Max Display Outputs per Card 2
Supported Display Output Types DisplayPort , DVI SL (requires additional
adapter)
Max DisplayPort Resolution per Output 2560x1600
Max DVI Resolution per Output 1920x1200
Independent Desktop Mode Yes
Stretched Desktop Mode Yes
Pivot Support Yes
Passive Cooling Yes
Unified Driver Package Yes
PowerDesk Software Yes
EMC Certifications Class B
Aftermarket Cable/Adapter Upgrades DisplayPort to DVI-D
Supported Operating Systems Microsoft® Windows® 7, Microsoft® Windows® XP
(32/64bit), Microsoft® Windows® Vista (32/64bit), Microsoft® Windows® Server
2003/2008 (32/64bit), Windows® 7 and Linux
Open GL support 2.0
Environmental ROHS & WEEE compliant
Warranty 3 years
⚫High-resolution two DisplayPort monitor support - Support resolutions up to 2560 x 1600 per output
⚫Native PCI Express x16 performance
⚫1 GB of memory
⚫Low-profile form factor
⚫Passive cooling and low power consumption
