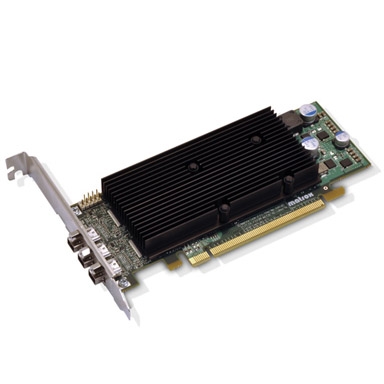

The Matrox M9138 LP PCIe x16 triple graphics card renders pristine image quality on up to three DisplayPort monitors at resolutions up to 2560 x 1600 per output, for an exceptional multi-monitor user experience. With 1 GB of memory and advanced desktop management features, such as independent and stretched desktop modes, the M9138 drives business, industrial, and government applications with extraordinary performance. Its low-profile form factor makes it easy to integrate into a wide variety of systems. It offers multiple operating system support, and can be paired with another M-Series card for additional monitor support.

High-resolution three DisplayPort monitor support up to 2560 x 1600 per output
Passive cooling and low power consumption
Low-profile form factor
Stretched and independent desktop modes
Edge Overlap (New for Windows 7.0)
Unified driver package compatible with other Matrox products
Multiple operating system support
M-Series multi-card support* - Add an additional M-Series card into the same system to drive up to 11 displays from two cards
Joined graphics card mode** - Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
Model Matrox M9138
Edition Standard
Platform Multi Display
Classification Workstation
GPU Processor Cores (#) 1
Multi-GPU Support Not Supported
GPU Physics Support Not Supported
Memory Size (MB) 1024
Max Active Displays (#) 3
Display Configuration Stretched, Clone, Pivot, Independent
DVI Outputs (#) 0
DVI Type Max Res: 1920x1200 via Optional DP to DVI-D Adapter
HDMI Outputs (#) 0
Display Port Outputs (#) 3
Display Port Type 3 x Mini DP Type C v1.1 (Max Res: 2560x1600)
VGA Outputs (#) Not Supported
Inputs None
3D Video Support Not Supported
HDMI Audio Not Supported
Form Factor Low Profile/ATX
Interface PCI Express 2.0 X16
Cooler Type Passive Heatsink
Cooler Fans (#) 0
Cooler Heatpipes (#) 0
Unit Width Single Slot
Unit Dimensions (L x H x D mm) 167.64 x 68.6
Supplementary Power Connectors Powered by Host Slot
OpenGL Version 2.0
Software Matrox PowerDesk
Other Features Unified Driver Package
Package Contents mDP to DP (3), LP Bracket (1)
Packaging Retail
Warranty 3YR RTB
