Matrox Pciex1 M9120 Plus 512mb Lp H/ S M9120-e512lau1f

SKU
174633
Brand
Warranty
Standard Manufacturer's Warranty

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!

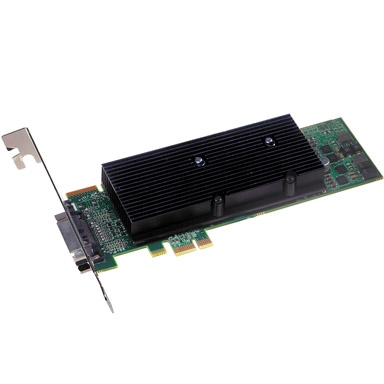

The Matrox M9120 Plus LP PCIe x1 low-profile, dual monitor graphics card renders pristine image quality on up to two displays, at resolutions up to 1920x1200 (digital) or 2048x1536 (analog) each. This card also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920x1200 each.

Quad VGA Output support via optional cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
Passive cooling and low power consumption
Stretched and independent desktop modes
Edge Overlap (New for Windows 7.0)
Unified driver package compatible with other Matrox products
Multiple operating system support
M-Series multi-card support* - Add an additional M-Series card into the same system to drive up to 12 displays from two cards
Joined graphics card mode** - Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
Unified driver package other Matrox products
High resolution two monitor support up to 1920x1200 per digital output
Low-profile form factor
Model Matrox M9120 Plus
Edition Plus
Platform Multi Display
Classification Workstation
GPU Processor Cores (#) 1
Multi-GPU Support Not Supported
GPU Physics Support Not Supported
Memory Size (MB) 512
Memory Type DDR2
Max Active Displays (#) 2/4*
Display Configuration Stretched, Clone, Pivot, Independent
DVI Outputs (#) 2
DVI Type 2 x DVI-I Single Link (Max Res: 1920x1200) via LFH60 Connector
HDMI Outputs (#) 0
Display Port Outputs (#) 0
VGA Outputs (#) Max Res: 2048x1536 via DVI to VGA Adapter. Max Res: 1920x1200 with Quad Cable
Inputs None
3D Video Support Not Supported
HDMI Audio Not Supported
Form Factor Low Profile/ATX
Interface PCI Express 2.0 X1
Cooler Type Passive Heatsink
Cooler Fans (#) 0
Cooler Heatpipes (#) 0
Unit Width Single Slot
Unit Dimensions (L x H x D mm) 167.64 x 68.6
Supplementary Power Connectors Powered by Host Slot
OpenGL Version 2.0
Software Matrox PowerDesk
Other Features Unified Driver Package, LP Bracket Pre-Installed, Quad Analog Upgradeable via Optional CAB-L60-4XAF
Package Contents LFH60 to 2 x DVI-I 30cm Cable (1), DVI to VGA (2), ATX Bracket (1)
Packaging Retail
Warranty 3yr RTB

The Matrox M9120 Plus LP PCIe x1 low-profile, dual monitor graphics card renders pristine image quality on up to two displays, at resolutions up to 1920x1200 (digital) or 2048x1536 (analog) each. This card also supports up to four analog displays via an aftermarket quad-upgradeable cable, at resolutions of up to 1920x1200 each.
⚫Quad VGA Output support via optional cable (CAB-L60-4XAF); enables up to 1920 x 1200 per output
⚫Passive cooling and low power consumption
⚫Stretched and independent desktop modes
⚫Edge Overlap (New for Windows 7.0)
⚫Unified driver package compatible with other Matrox products
⚫Multiple operating system support
⚫M-Series multi-card support* - Add an additional M-Series card into the same system to drive up to 12 displays from two cards
⚫Joined graphics card mode** - Insert two M-Series cards into the same system to drive even more monitors across a stretched desktop
⚫Unified driver package other Matrox products
⚫High resolution two monitor support up to 1920x1200 per digital output
⚫Low-profile form factor
