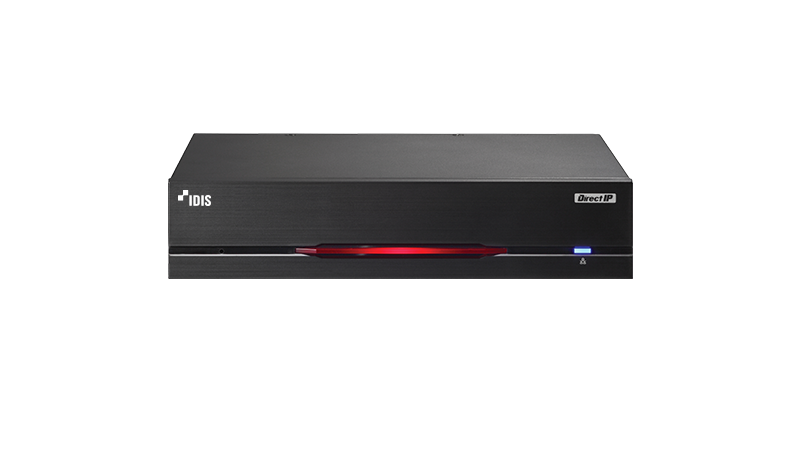

IDIS 16CH DECODER, HDMI/VGA/CVBS OUT, 3YR DP-DD1316
SKU
406138
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$0.00
Buy Now And Earn 0 Reward Points!
DirectIP™ 16-channel Decoder
/ NDAA Compliant
- Supports IDIS IP Camera
- Supports HDMI, VGA, CVBS port
- Supports 4K Display (HDMI)
- Up to 480ips Live Display
| Video | |
| Video Inputs | 16 IP Channels |
| Max. Resolution | Up to 12MP (Depending on IP Camera) |
| Supported Device | IDIS IP Camera |
| Video Outputs | 1 HDMI, 1 VGA, 1 CVBS |
| Display Resolution | HDMI : 3840x2160, 1920x1200, 1920x1080, 1680x1050, 1600x1200 VGA : 1920x1200, 1920x1080, 1680x1050, 1600x1200 CVBS : 720x480(NTSC) , 720x576(PAL) |
| Display Speed | Up to 480ips |
| Network | |
| Video Compression | H.265, H.264 |
| Max. Incoming Throughput | 90Mbps |
| Ethernet | Gigabit Ethernet x1 |
| Environmental | |
| Operating Temperature | 0°C ~ +40°C (32℉ ~ 104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE |
| Power Consumption | 12V=, 1.4A, 16.8W PoE, IEEE 802.3at(Class 4) |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 200mm x 44mm x 153mm (7.9" x 1.7" x 6.0") |
| Weight | 0.78kg (1.72lb) |
IDIS 16CH DECODER, HDMI/VGA/CVBS OUT, 3YR
