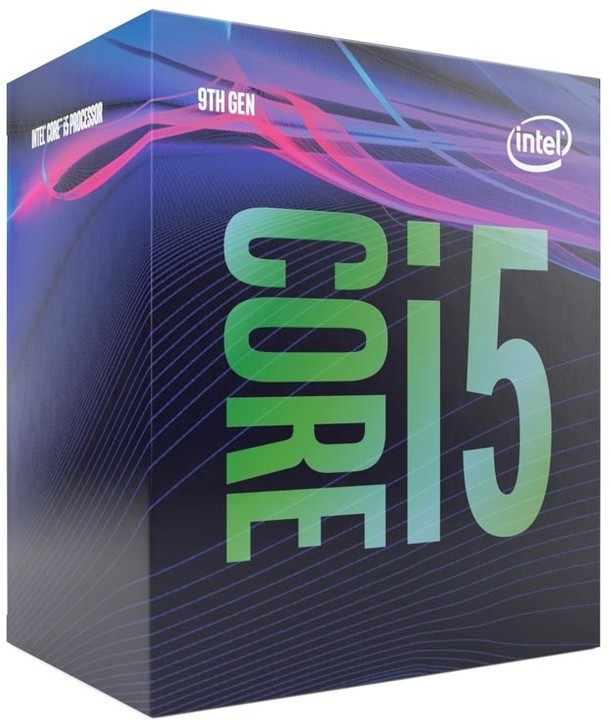

Intel Core I5-9500 3.0Ghz S1151 Coffee Lake 9Th Generation Boxed 3 Years Warranty Bx80684I59500
SKU
284503
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$319.00
Buy Now And Earn 319 Reward Points!
Essentials
-
Product
Collection9th
Generation Intel® Core™ i5 Processors
-
Code NameProducts
formerly Coffee Lake
-
Vertical SegmentDesktop
-
Processor Numberi5-9500
-
StatusLaunched
-
Launch DateQ2'19
-
Lithography14
nm
- Use ConditionsPC/Client/Tablet
Performance
-
# of Cores6
-
# of Threads6
-
Processor
Base Frequency3.00
GHz
-
Max Turbo
Frequency4.40
GHz
-
Cache9
MB SmartCache
-
Bus Speed8
GT/s DMI3
-
TDP65
W
Supplemental Information
-
Embedded
Options AvailableNo
-
DatasheetView
now
Memory Specifications
-
Max Memory
Size (dependent on memory type)128
GB
-
Memory TypesDDR4-2666
-
Max # of
Memory Channels2
-
Max Memory
Bandwidth41.6
GB/s
-
ECC Memory
Supported ‡No
Processor Graphics
-
Processor
Graphics ‡Intel®
UHD Graphics 630
-
Graphics Base
Frequency350
MHz
-
Graphics Max
Dynamic Frequency1.10
GHz
-
Graphics
Video Max Memory64
GB
-
4K SupportYes,
at 60Hz
-
Max
Resolution (HDMI 1.4)‡4096x2304@24Hz
-
Max
Resolution (DP)‡4096x2304@60Hz
-
Max
Resolution (eDP - Integrated Flat Panel)‡4096x2304@60Hz
-
DirectX*
Support12
-
OpenGL*
Support4.5
-
Intel® Quick
Sync VideoYes
-
Intel® InTru™
3D TechnologyYes
-
Intel® Clear
Video HD TechnologyYes
-
Intel® Clear
Video TechnologyYes
-
# of Displays Supported ‡3
-
Device ID0x3E92
Expansion Options
-
Scalability1S
Only
-
PCI Express
Revision3.0
-
PCI Express
Configurations ‡Up
to 1x16, 2x8, 1x8+2x4
-
Max # of PCI
Express Lanes16
Package Specifications
-
Sockets
SupportedFCLGA1151
-
Max CPU Configuration1
-
Thermal
Solution SpecificationPCG
2015C (65W)
-
TJUNCTION100°C
-
Package Size37.5mm
x 37.5mm
