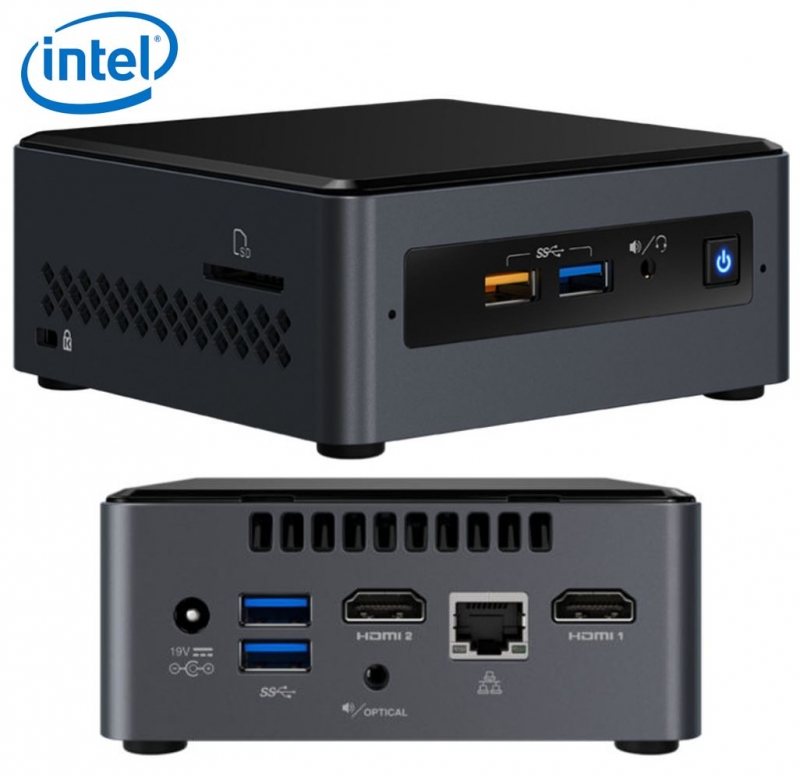

Intel Nuc Boxnuc7pjyh4 Mini Pc J5005 2.8ghz 2xddr4 Sodimm 2.5" Hdd/ Ssd 2xhdmi 2xdisplays Gbe Lan
SKU
264945
Brand
Warranty
Standard Manufacturer's Warranty
No Longer Available
$348.00
Buy Now And Earn 348 Reward Points!
QUICK OVERVIEW
WiFi BT 4xUSB3.0 2xUSB2.0 for Digital Signage POS BOXNUC7PJYH4
The Intel® NUC is a powerful 4x4-inch mini PC with entertainment, gaming, and productivity features, including a customizable board that is ready to accept the memory, storage, and operating systems that you want.
| Display & Graphics | |
|---|---|
| Graphics Controller Manufacturer: | Intel |
| Graphics Controller Model: | UHD Graphics 605 |
| Graphics Memory Accessibility: | Shared |
| Graphics Memory Technology: | DDR4 SDRAM |
| General Information | |
|---|---|
| Brand Name: | Intel |
| Manufacturer Part Number: | BOXNUC7PJYH4 |
| Manufacturer Website Address: | http://www.intel.com.au |
| Manufacturer: | Intel Corporation |
| Packaged Quantity: | 1 |
| Product Line: | NUC |
| Product Model: | NUC7PJYH |
| Product Name: | NUC Kit NUC7PJYH |
| Product Type: | Desktop Computer |
| Interfaces/Ports | |
|---|---|
| HDMI: | Yes |
| Number of USB 2.0 Ports: | 2 |
| Number of USB 3.0 Ports: | 4 |
| Total Number of USB Ports: | 6 |
| Memory | |
|---|---|
| Memory Technology: | DDR4 SDRAM |
| Miscellaneous | |
|---|---|
| Package Contents: |
|
| Network & Communication | |
|---|---|
| Bluetooth: | Yes |
| Wireless LAN: | Yes |
| Physical Characteristics | |
|---|---|
| Form Factor: | Mini PC |
| Processor & Chipset | |
|---|---|
| Processor Manufacturer: | Intel |
| Processor Model: | J5005 |
| Processor Speed: | 1.50 GHz |
| Processor Type: | Pentium Silver |
| Warranty | |
|---|---|
| Limited Warranty: | 3 Year |
Intel NUC BOXNUC7PJYH4 mini PC J5005 2.8GHz 2xDDR4 SODIMM 2.5" HDD/SSD 2xHDMI 2xDisplays GbE LAN WiFi BT 4xUSB3.0 2xUSB2.0 for Digital Signage POS
Essentials
Product CollectionIntel® NUC Kit with Intel® Pentium® Processors
Code NameProducts formerly JUNE CANYON
StatusLaunched
Launch DateQ1'18
Board Form FactorUCFF (4" x 4")
SocketSoldered-down BGA
Internal Drive Form Factor2.5" Drive
# of Internal Drives Supported1
Lithography14 nm
TDP10 W
DC Input Voltage Supported12-19 VDC
Processor IncludedIntel® Pentium® Silver J5005 Processor (4M Cache, up to 2.80 GHz)
Warranty Period3 yrs
Supplemental Information
Embedded Options AvailableNo
DescriptionOther features: Includes SDXC card slot, dual microphones
Memory & Storage
Max Memory Size (dependent on memory type)8 GB
Memory TypesDDR4-2400 1.2V SO-DIMM
Max # of Memory Channels2
Max Memory Bandwidth38.4 GB/s
Max # of DIMMs2
ECC Memory Supported ‡No
Processor Graphics
Integrated Graphics ‡Yes
Graphics Output2x HDMI 2.0a
# of Displays Supported ‡2
Expansion Options
Removable Memory Card SlotSDXC with UHS-I support
I/O Specifications
# of USB Ports6
USB Configuration2x front and 2x rear USB 3.0; 2x USB 2.0 via internal headers
USB Revision2.0, 3.0
USB 2.0 Configuration (External + Internal)0 + 2
USB 3.0 Configuration (External + Internal)2B 2F + 0
Total # of SATA Ports1
Max # of SATA 6.0 Gb/s Ports1
RAID ConfigurationN/A
Audio (back channel + front channel)7.1 digital; L+R+mic (F); L+R+TOSLINK (R)
Integrated LAN10/100/1000
Integrated Wireless‡Intel® Wireless-AC 9462
Integrated BluetoothYes
Consumer Infrared Rx SensorYes
S/PDIF Out ConnectorTOSLINK
Additional HeadersCEC, 2x USB2.0, AUX_PWR, FRONT_PANEL
Package Specifications
Low Halogen Options AvailableSee MDDS
Advanced Technologies
Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
Intel® vPro™ Technology ‡No
TPMNo
Intel® HD Audio TechnologyYes
Security & Reliability
