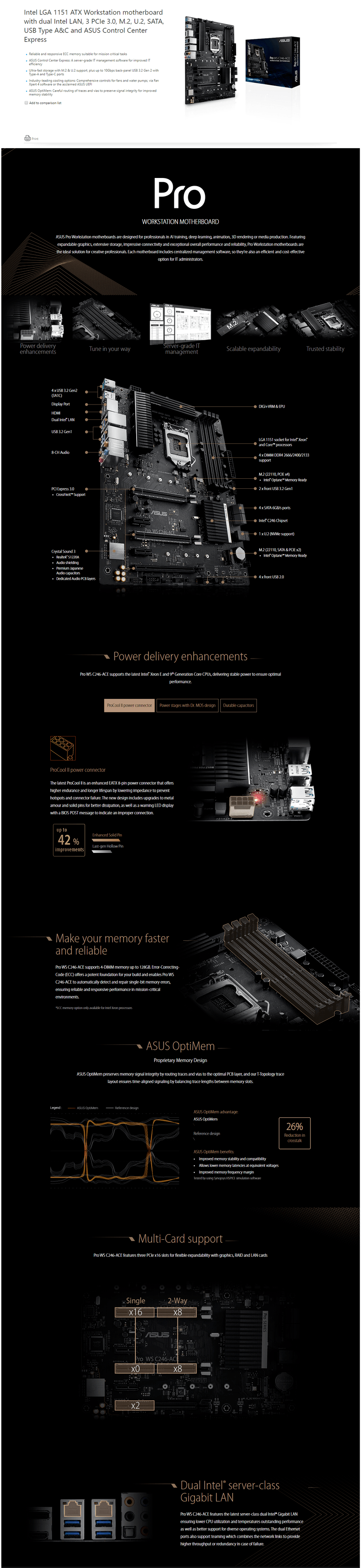

Asus Pro WS C246-ACE Intel LGA 1151 ATX Workstation Motherboard

SKU
290595
Brand
MPN
PRO WS C246-ACE
Warranty
1 Year Manufacturer's return to base
Availability
Preorder 3-4 weeks
Freight Estimate
$397.00
Buy Now And Earn 397 Reward Points!

QUICK OVERVIEW

with dual Intel LAN, 3 PCIe 3.0, M.2, U.2, SATA, USB Type A&C and ASUS Control Center Express
AUDIO FEATURES
Manufacturer: Realtek
Audio Card: ALC S1220A
Audio Features: * Power pre-regulator reduces power input noise to ensure consistent performance * Impedance sense for front and rear headphone outputs * Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
CHIPSET FEATURES
Manufacturer: Intel
Chipset Type: C246
GRAPHICS FEATURES
Manufacturer: Intel
Type/Model: UHD Graphics
INTERFACE FEATURES
Slots Type : ,2 x M.2 ,2 x PCIe 3.0 x1 ,3 x PCIe 3.0 x16
I/O Ports (Back) : ,1 x Display Port ,1 x HDMI ,1 x Optical S/PDIF out ,1 x USB 3.1 Type-C ,2 x RJ-45 ,3 x USB 3.1 Type-A ,4 x USB 3.1 ,5 x Audio
I/O Ports (Internal) : ,1 x 24-pin EATX Power ,1 x AAFP Connector ,1 x AIO Pump Header ,1 x CMOS Jumper ,1 x COM Port Header ,1 x CPU Fan Connector ,1 x System Panel ,1 x Thermal Sensor Connector ,3 x Chassis Fan Connector ,4 x SATA
MEMORY FEATURES
Total No. of Slots: 4
Speed Supported : ,2133 ,2400 ,2666
NETWORK FEATURES
Manufacturer: Intel
Network Card Controller: ,I210AT ,I219LM
Network Card Type: Gigabit Ethernet
Network Features: * ASUS Turbo LAN Utility * ASUS LAN Guard
OTHER FEATURES
Other Features: * ASUS SafeSlot Core: Fortified PCIe Slot prevents damage * Stylish Fanless Design Heat-sink solution and MOS Heatsink * ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
PROCESSOR FEATURES
Manufacturer: Intel
Processor Type Supported : ,Celeron ,Core i3 ,Core i5 ,Core i7 ,Core i9 ,Pentium Gold ,Xeon
Processor Socket Supported: LGA1151
PRODUCT
Brand Name: Asus
Manufacturer Web Site: http://www.asus.com
Product Type: Motherboard
Product Model: Pro WS C246-ACE
Form Factor: ATX
