DESCRIPTION

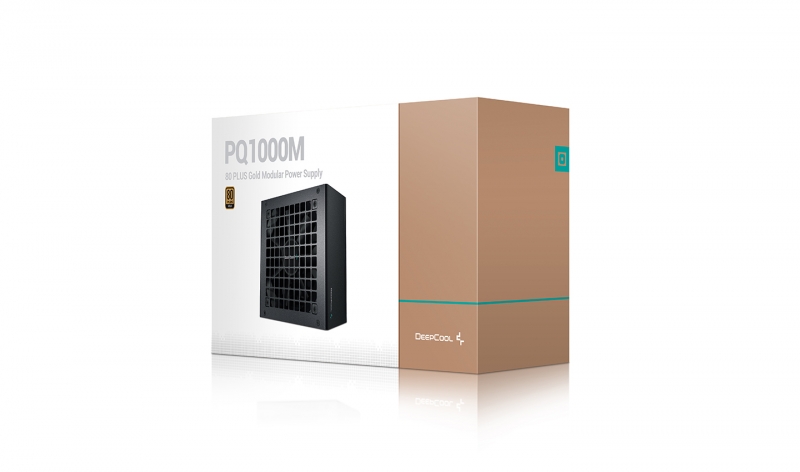

Deepcool PQ1000M 80+ Gold Power Supply Unit, ATX12V V2.4, 120mm Fan, Full Japan Electrolytic Capacitors, ≥90% Efficiency, 100,000 Hours MTBF, 10Y WTY

PQ1000M Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.

Technical Spec
Type ATX12V V2.4
Product Dimensions 150×140×86mm (W x L x H)
80PLUS Certifications GOLD
Fan Size 120mm
Fan Bearing FDB
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-500ms
Hold Up Time ≥16ms (80% load))
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP
Operation Temperature 0 - 40 °C
Regulatory CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA
Erp Regulation ErP 2013
MTBF 100,000 Hours
Warranty 10 Years
EAN P/N
6933412702016 R-PQA00M-FA0B-AU
