No Longer Available

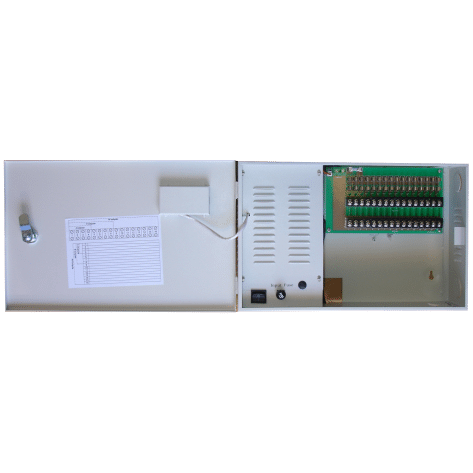

Looking for a wall mount 12V DC power supply? Look no further, Patriot Power Supplies W-DC12-12A provides 12 AMPS with 16 fused outputs and a range of features, including LED indicators, LCD display, user adjustable voltage, battery backup (option) & more!
FEATURES:
- LED voltage display
- Battery backup (optional)
- Tamper switch (optional)
- User adjustable voltage up to 13.8Vdc
- Mains fail and low battery contacts
- Lockable front door
- Internal GPO recess
- Short circuit & overload protection
- Cooling by free air convection
- Individually fused outputs
- LED indicators on all outputs
Input Voltage | 85 ~ 264VAC |
Output Voltage Range (Adjustable) | 11.2 ~ 13.8VDC (Preset @ 12VDC) |
Output Voltage Tolerance | ± 1% |
Number of fused outputs | 16 x 1A outputs |
Max Power Supply Current | 12A Total |
Power Supply Protection | Short Circuit, Overload and Over Voltage |
Australian Regulatory Compliance Mark (RCM) | N12754 |
Dimensions / Weight | 362x92x235mm / 3.6Kg |
Contacts | Mains Failure & Low Battery |
Internal Battery Capacity | 1 x 12V 7Ah or 12V 9Ah (Not included) |
