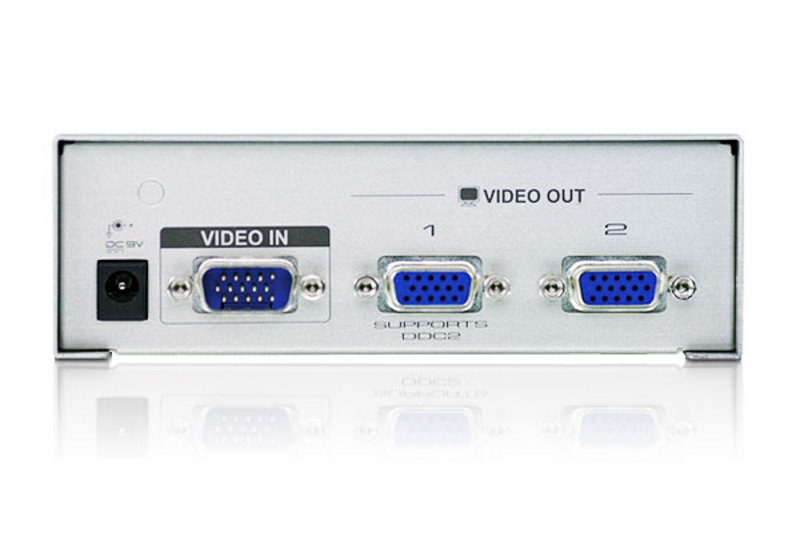

ATEN VS-92A 2 Port Video Splitter 250Mhz 1920x1440 @ 60Hz Up to 65m

SKU: 12315

Brand: ATEN

Manufacturer Link


Warranty: 1 Year Manufacturer's return to base

Availability: In stock

Freight Estimate: Please add item(s) into shopping cart and enter postcode



Video Splitter

The Video Separator is a signal booster and splitter that is used to take video input from a single source and direct it to two video outputs for monitors using analog signals. The signal boost obtained by using the VS92A allows you to not only split the signal but to extend the distance so that you can send the signal to about 210 feet. (Your average VGA card, combined with a standard VGA cable, can send a clear VGA signal approximately 25 feet.) This makes public broadcasts from a single computer very feasible. If you want to display the same information on many monitors at once, such as in a classroom environment, or at a demonstration, this product performs incredibly well.

Bandwidth is the term that is used to describe the signal capacity of these units. In general, bandwidth is directly proportional to the amount of data transmitted per unit of time. Specifically, in analog signals, bandwidth is the difference between the highest-frequency and the lowest frequency components of a givin signal. For example a voice telephone signal has a bandwidth of 3000 Hz (or 3000 cycles per second), where an analog TV signal has a bandwidth of approximately 6MHz (or 6 million cycles per second) which is approximately 2000 times greater than a simple voice phone call. VS92A has a bandwidth of 250MHz (which is 250 million cycles per second) and that over 40 times greater than a simple TV signal. This huge bandwidth allows for the transmission of large amounts of information at a very high rate of speed, and thus you can use the very high resolution setting of 1920 x 1440 in 24 or 32 bit true color mode.

Distributor Part No. : Ingram Micro: 330161 , TechData: 73452

* One video input with two video outputs
* High 250 MHz video bandwidth T
* ransmission distance of up to 210 feet
* Suitable for SVGA, VGA, and Multisync monitors
* Daisy-Chain multiple units together for even more outputs
* Ideal for public broadcasting; remote monitoring; classroom and training facilities

Diagram :
Package Content:

* 1 x VS92A Video Splitter
* 1 x Power Adapter
* 1 x User Manual

Specification :
Power Adaptor Part #
USA # # 0AD1-0909-031G
for German Region # 0AD6-1909-031G
for UK region # 0AD4-3909-031G
* Master Carton
* Master Carton Qty. 20
Depth 20.0 in. (50.8 cm)
Width 13.8 in. (34.9 cm)
Height 13.5 in. (34.3 cm)
*** Unit Package Dimensions
Height 2.5 in. (6.4 cm)
Width 6.5 in (16.5 cm)
Length 9.5 in. (24.1 cm)
Power On 1
Case Metal
Master Carton Wt. 36.3 lb. (16.5 kg)
Unit Pack Wt. 1.7 lb. (0.8 kg)
**** Unit Dimensions
Length 5.1 in. (13.0 cm)
Height 1.8 in. (4.5 cm)
Width 3.0 in. (7.5 cm)
Power Consumption DC 9V 0.82 W (Max)
Cable Distance 210ft. (65 m)
Connectors (Input) 15 pin HDB Male
Signal Type VGA; SVGA; MultiSync
Connectors (Output) 2 x 15 pin HDB Female
VGA Bandwidth (-3db) 250 MHz
Video Resolution 1920 x 1440 @ 60 Hz


Aten VS-92A – 2-Port Video Splitter

The VS92A is a video splitter that not only duplicates the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 65 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments from safe locations, or offering superior video for company or classroom training.



  • One video input to 2 video outputs
  • Cascadable to 3 levels - provides up to 8 video signals
  • Supports 350 MHz bandwidth
  • Long-distance transmission - up to 65 m *
  • Superior video quality - 1920 x 1440@60Hz
  • DDC, DDC2, DDC2B Compatible (Port 1 only)
  • Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
  • All metal casing

* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.


Display Connections 2/8*
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 2 x HDB-15 Female (Blue)
Power 1 x DC Jack
LEDs Power 1 (Orange)
Video Resolution 1920 x 1440 @ 60Hz
Bandwidth 350 MHz
Signal Range 65 m
Power Consumption DC9V, 1.24W
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.42 kg
(L x W x H)
13.00 x 7.50 x 4.50 cm


Package Contents

  • 1 x 2-Port Video Splitter
  • 1 x Power Adapter
  • 1 x User Instructions
