4cabling 1.5m Cat 5e Ethernet Network Cable: Red 004.001.1004
SKU
238087
Brand
MPN
004.001.1004
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$6.00
Buy Now And Earn 6 Reward Points!
Details

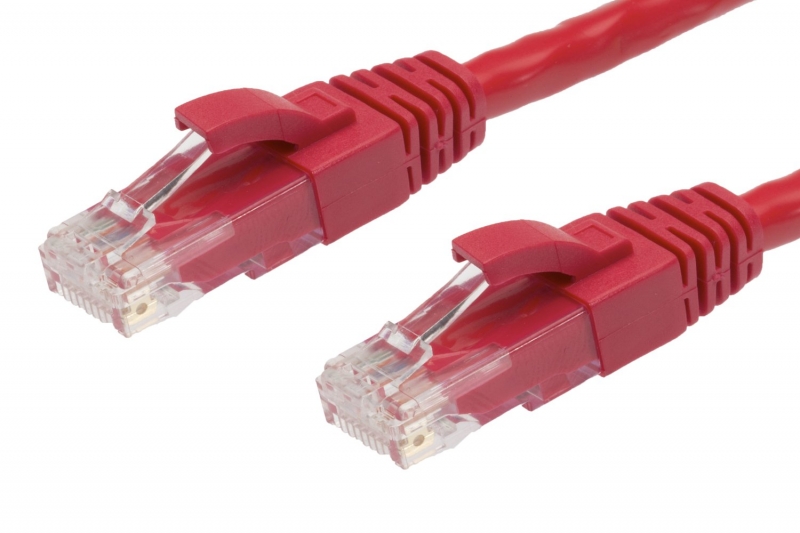

1.5m Cat 5E RJ45 - RJ45 Network Cable: Red
4Cabling’s range of quality category 5e Ethernet Patch Leads are made from 100% Bare Copper. Cat 5e cables are designed to be used in mission critical situations where data integrity is of the utmost importance. 4Cabling offers this quality range of ethernet cables in 10 colours and lengths varying from 0.25m up to 50m to satisfy all your network patching requirements.
Cat5e or Category 5 enhanced cable has the capability to support up to 100Mbps @ 100MHz. It also reduces the amount of crosstalk between the wires within the cable, resulting in a greater overall transmission speed.
Applications include:
- Structured cabling for computer networks such as Ethernet
- Equipment to equipment patching
- Cross-connect patching
CABLE SPECIFICATIONS
- Cable Type: Cat 5e
- Connectors: RJ45-RJ45
- Length: 1.5mm
- Colour: Red
- Insulation Material: PE
- Jacket Material: Flame Retardant PVC
- Cable Dia. - Outer Dia.: 5.5mm ± 0.2mm
FEATURES
- RJ-45 connectors
- UTP stranded conductor Cat-5E patch cords with 4 twisted pairs using T568A color code
- Impedance Matched - Wire and connectors are carefully matched to virtually eliminate echoing and cancellation, providing high speed, error free transmission
- Gold Plated Contacts - Gold plating eliminates corrosion and provides maximum conductivity to ensure data integrity
- Unique PVC Jacket - Exclusive polymer technology provides unsurpassed durability and flexibility
- Snag Free Boots - Prevent cable kinks and bent pins when removing them from patch panels
- Strain Relief - Increases strength while sustaining maximum flexibility even under extreme conditions
CERTIFICATIONS
- ETL, UL Verification
- Flame test: comply with IEC 60332-1-2
- ISO/IEC11801:2011(Ed. 2.2)
- ANSI/TIA/EIA-568-C.2
- EN 50173-1:2011
- EN 50173-2:2007 including amendment A1:2010
- IEC61935-2:2010(Ed.3.0) (transmission requirements)
WARRANTY
3 year limited warranty.
| Part # | 004.001.1004 |
|---|---|
| Cable Type | Cat 5E Stranded |
| Colour | Red |
| Connector Type | RJ45-RJ45 |
| Cable Length | 1.5m |
| Jacket Material | PVC |
