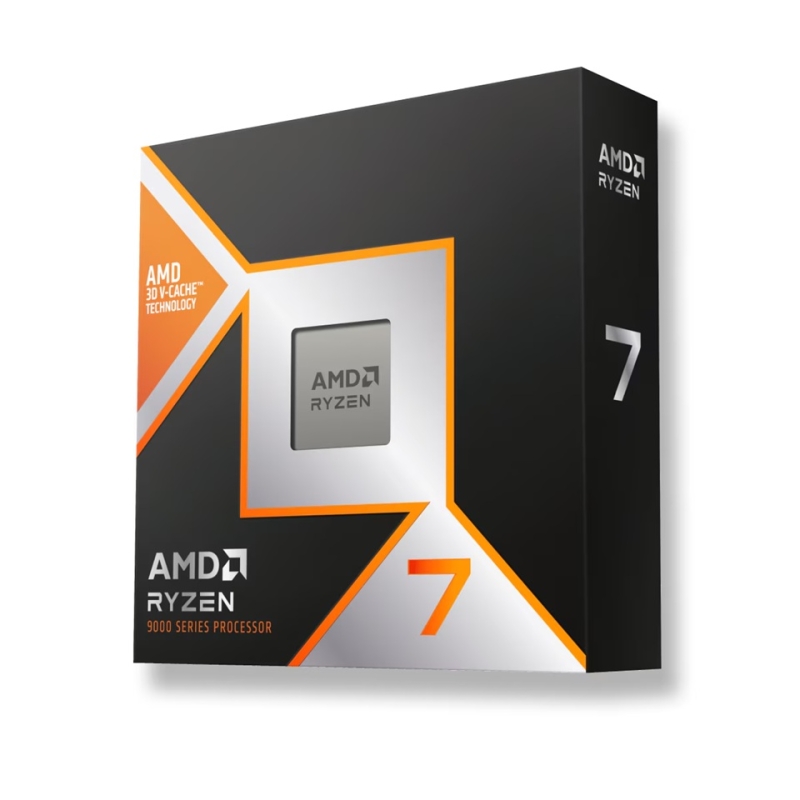

AMD Ryzen 7 9800X3D 8-core/16-thread Zen 5 Cpu, 5.2GHz Boost, 96MB L3 Cache, 120W Tdp, DDR5, PCIe 5.0, Radeon Graphics, 100-100001084WOF
SKU
426361
Brand
MPN
100-100001084WOF
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$859.00
Buy Now And Earn 859 Reward Points!
AMD Ryzen 7 9800X3D: 8-core, 16-thread Zen 5 CPU, 5.2GHz boost, 96MB L3 cache, 120W TDP, DDR5, PCIe 5.0, Radeon Graphics
Harness the ultimate gaming edge with AMD Ryzen™ 7 9800X3D Processor. Enjoy faster gaming with 2nd gen AMD 3D V-Cache™ technology for low latency.
KEY FEATURES
Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
Harness the ultimate gaming edge with AMD Ryzen™ 7 9800X3D Processor. Enjoy faster gaming with 2nd gen AMD 3D V-Cache™ technology for low latency.
KEY FEATURES
Supported Technologies AMD EXPO™ Technology , AMD Ryzen™ Technologies
| Name AMD Ryzen™ 7 9800X3D | Family Ryzen |
| Series Ryzen 9000 Series | Form Factor Desktops, Boxed Processor |
| Market Segment Enthusiast Desktop | AMD PRO Technologies No |
| Regional Availability Global | Former Codename Granite Ridge AM5 |
| Processor Architecture Zen 5 | # of CPU Cores 8 |
| Multithreading (SMT) Yes | # of Threads 16 |
| Max. Boost Clock Up to 5.2 GHz | Base Clock 4.7 GHz |
| L1 Cache 640 KB | L2 Cache 8 MB |
| L3 Cache 96 MB | Default TDP 120W |
| Processor Technology for CPU Cores TSMC 4nm FinFET | Processor Technology for I/O Die TSMC 6nm FinFET |
| Package Die Count 2 | Unlocked for Overclocking Yes |
| AMD EXPO™ Memory Overclocking Technology Yes | Precision Boost Overdrive Yes |
| Curve Optimizer Voltage Offsets Yes | AMD Ryzen™ Master Support Yes |
| CPU Socket AM5 | Supporting Chipsets A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850 |
| CPU Boost Technology Precision Boost 2 | Instruction Set x86-64 |
| Supported Extensions AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64 | Thermal Solution (PIB) Not Included |
| Recommended Cooler Liquid cooler recommended for optimal performance | Max. Operating Temperature (Tjmax) 95°C |
| Launch Date 11/07/2024 | *OS Support Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit |
| CONNECTIVITY | Native USB 3.2 Gen 2 (10Gbps) 4 |
| Native USB 2.0 (480Mbps) 1 | PCI Express® Version PCIe® 5.0 |
| Native PCIe® Lanes (Total/Usable) 28 , 24 | NVMe Support Boot , RAID0 , RAID1 , RAID5 , RAID10 |
| System Memory Typev DDR5 | Memory Channels 2 |
| Max. Memory 192 GB | System Memory Subtype UDIMM |
| Max Memory Speed 2x1R DDR5-5600 | 2x2R DDR5-5600 |
| 4x1R DDR5-3600 | 4x2R DDR5-3600 |
| ECC Support Yes (Requires mobo support) | GRAPHICS CAPABILITIES |
| Graphics Model AMD Radeon™ Graphics | Graphics Core Count 2 |
| Graphics Frequency 2200 MHz | USB Type-C® DisplayPort™ Alternate Mode Yes |
