AJAX EXTERNAL ANTENNA FOR HUB BP 2YR 104117.290.NC

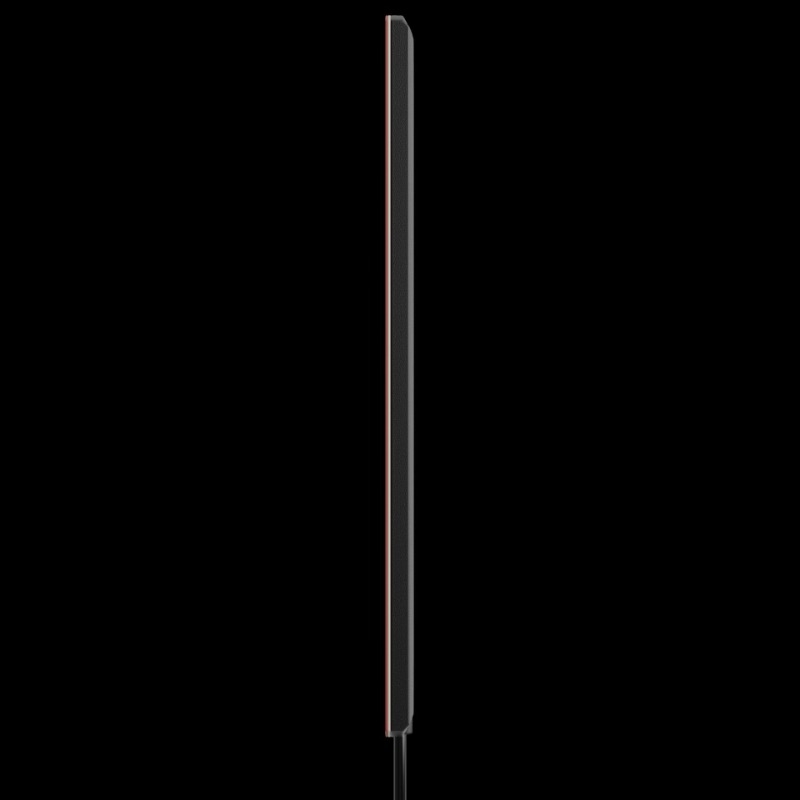

ExternalAntenna
Antenna for LTE or radio communication.
Radio communication that never falters
ExternalAntenna helps overcome barriers to radio signals in challenging environments, such as safe boxes, reinforced concrete rooms, or metal enclosures. Place the signal transmitter or receiver beyond obstacles to improve signal strength in Jeweller, Wings, and cellular channels and get a more reliable and stable connection. If the ExternalAntenna cable is cut or severed, you will receive an instant alert.
Protected from cable breakage
If the integrity of the ExternalAntenna cable is compromised, the system will notify both the security company and users of breakage. Even if the signal only weakens and doesn’t disappear completely, a notification will still be sent. By default, the hub automatically switches to the built-in antennas and informs both users and the security company of the issue.
Triple solution for all needs
A single ExternalAntenna, which supports 698–960 MHz and 1,710–2,690 MHz frequency bands, can be connected to one of three communication outputs: Jeweller, Wings, or cellular. Depending on the selected output, the antenna will optimize the connection within the supported frequency band.
Swift and easy configuration
The device is connected to the hub’s circuit board and is routed to the outside through mounting holes in the hub’s casing or Ajax Case.
| Communication channels | 4G/LTE, Jeweller and Wings |
| Operating frequencies | 698–960 MHz, 1,710–2,690 MHz |
| Connector | SMA |
| External antenna breakage detection | An Ajax system is able to detect a breakage of an external antenna and notify users and the monitoring company. |
| Dimensions | 115.6 × 21.7 × 5.8 mm |
| Cable length | 3,000 mm |
| Weight | 41 g |
| Operating temperature range | from –40 °C to +85 °C |
| Operating humidity | up to 95% |
| Warranty | 24 months |
