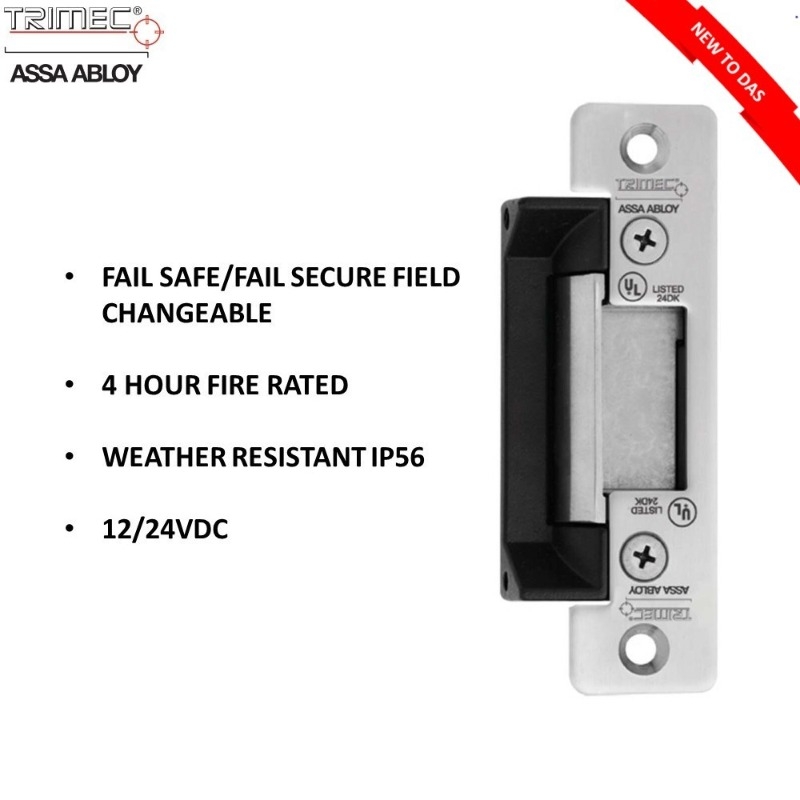

TRIMEC 110111-070M ES110 12/24VDC FAIL SAFE NON MONITORED IP56 5YR
SKU
402874
Brand
MPN
110111-070M
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$109.00
Buy Now And Earn 109 Reward Points!
The TRIMEC ES110 is a cost efficient robust electric strike with a solid construction of one-piece cast aluminium body and stainless steel striker. Having a deeper than normal strike-keeper area, ES110 is designed to work with an extensive range of locks and offers the same level of security and reliability usually provided by more expensive electric locking solutions. Extension lips are available to accommodate the installation of electric strikes on door frames with different thickness. The ES110 product range of patented electric strikes are suitable for use with all access control installations where flexibility, security and lower cost are required.
Voltage | 12Vdc and 24Vdc |
Current | 250 mA @ 12Vdc - 125mA @ 24Vdc |
Solenoids | Solenoids are rated for continuous use |
Monitoring | None |
Holding Force | 680 kg Static Strength Rating |
Endurance | Cycle tested to 1,000,000 operations |
Latch | Suitable for 15mm latch bolt with 3mm door gap |
Environment | Operational temperature range -20°C to + 60°C Weather resistant construction. (IP56) |
Body | Cast Aluminium Construction |
Keeper | Stainless Steel |
