TRIMEC 112001-000 ES2001 12VDC FAIL SAFE MONITORED 5YR

SKU
402877
Brand
MPN
112001-000
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$196.00
Buy Now And Earn 196 Reward Points!

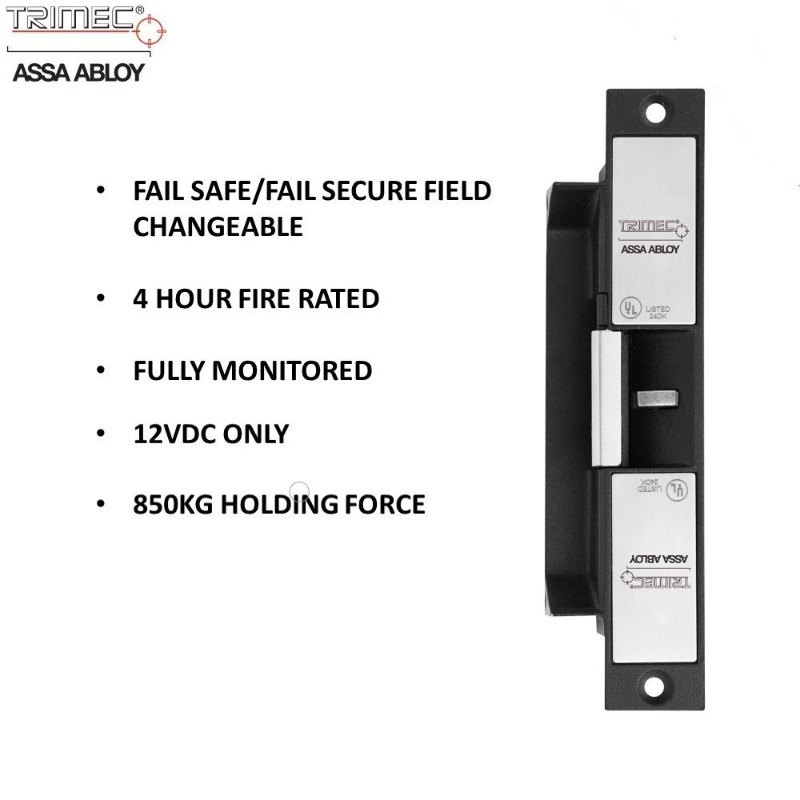

The Trimec ES2001 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system. These strikes are flexible and can be changed from fail safe to fail secure, mounted on the left or right hand side of the door and are available in 12Vdc. They offer a strong, dependable and long-lasting electric strike solution with a 850kg holding force and endurance rating of 1 million cycles.

Voltage 12-24Vdc
Current 175 mA @ 12Vdc
Solenoids Solenoids are rated for continuous use
Monitoring Solenoid Monitor - 1 amp NO/NC microswitch, Door/Latch Monitor - 1 amp NO/NC microswitch
Holding Force 850kg Static Strength Rating
Endurance Cycle tested to 1,000,000 operations
Latch Suitable for 15mm latch bolt with 3mm door gap
Environment Operational temperature range - 20°C to +60°C
Body Solid Stainless Steel Construction
Keeper Stainless Steel
TRIMEC 112001-000 ES2001 12VDC FAIL SAFE MONITORED 5YR
