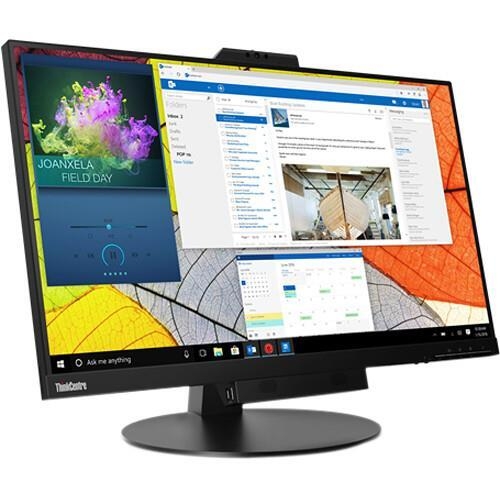

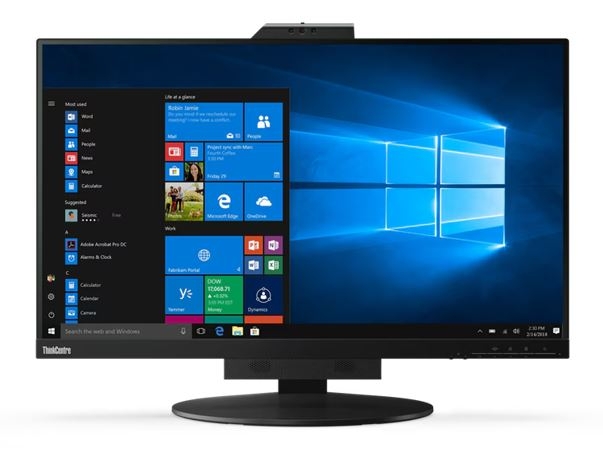

Lenovo ThinkCentre Tiny-in-One 27" 60Hz Qhd Monitor 2560x1440 16:9 14ms Height Adjust Tilt Swivel Pivot Hdmi DP USB3.1 Webcam Mic Vesa Black 3YR 11JHRAR1AU
QUICK OVERVIEW
PERFORMANCE
Display Size 27"
View Area 596.7 x 335.7 mm (23.49 x 13.22 inches)
Panel In-Plane Switching
Backlight WLED
Aspect Ratio 16:09
Resolution 2560x1440
Pixel Pitch 0.2331 x 0.2331 mm
Dot / Pixel Per Inch 109 dpi
View Angle (H / V) 178° / 178°
Response Time 4ms (Extreme mode) / 6ms (Typical mode) / 14ms (Off mode)
Color Support 16.7 Million
Refresh Rate 60Hz
Brightness 350 cd/m²
Contrast Ratio 1000:01:00
Color Gamut 99% sRGB
Screen Surface Treatment Anti-glare
Curvature None
Camera RGBIR camera
Microphone Dual Microphone
Speakers 2Wx2, Stereo Speakers
Power Consumption (Typical / Maximum) 37W / 57W
Power Adapter 170W 88%
Touchscreen None
Smart System None
DESIGN
Stand Tilt, Swivel, Pivot, Height Adjust Stand
Case Color Black
Side Bezel Width 2 mm
Mounting Supports VESA mount 100mm
ThinkCentre M Series Support Tiny Support
Dimensions (WxDxH) Models with full function monitor stand | 614 x 329 x 554.25 mm (24.17 x 12.95 x 21.82 inches)
Models without stand | 614 x 73.89 x 413.1 mm (24.17 x 2.91 x 16.26 inches)
Packaging Dimensions (WxDxH) 782 x 172 x 469 mm (30.79 x 77.00 x 18.46 inches)
Weight Models without stand | Around 4.90 kg (10.82 lbs)
Models with full function monitor stand | Around 7.95 kg (17.53 lbs)
Packaging Weight 9.75 kg (21.5 lbs)
CONNECTIVITY
USB Port 2x USB 3.1 Gen 1 (only available when a Tiny is installed or a PC is connected)
Video Connector 1x HDMI® 1.4, 1x DP 1.2
Network Connectivity None
SERVICE
Base Warranty 3-year
CERTIFICATIONS
Environmental Certification ENERGY STAR® Certified, TCO 8.0, TCO Edge 2.0, EPEAT™ Silver, RoHS
Ergonomic Certification TÜV Rheinland® Low Blue Light, TÜV Rheinland Flicker Free, TÜV Rheinland Eye Comfort
Sync Technology None
SOFTWARE
Operating System Support Windows® 7, Windows 10, Windows 11
ACCESSORIES
Video Cables Undetachable 3-in-1 cable, embedded into TIO, connects to the I/Os of Tiny (Power connector, USB [supports USB 3.1 Gen 1 / USB 2.0], DisplayPort™™)
Display Size 27"
View Area 596.7 x 335.7 mm (23.49 x 13.22 inches)
Panel In-Plane Switching (IPS)
Aspect Ratio 16:09
Resolution 2560x1440
Pixel Pitch 0.2331 x 0.2331 mm
Dot / Pixel Per Inch 109 dpi
View Angle (H / V) 178 / 178
Pixel Response Time 4 ms (Extreme mode) / 6 ms (Typical mode) / 14 ms (off mode)
Contrast Ratio 1000:01:00
Color Gamut 99% sRGB
Brightness 350 nits
Anti Reflective Anti-glare
Stand Tilt, Swivel, Pivot, Height Adjust Stand
Color Black
Side Bezel Width 2 mm
Dimensions with Stand (HxWxD) 614 x 329 x 554.25 mm (24.17 x 12.95 x 21.82
inches)
Weight (Including Stand) 7.95 kg (17.53 lbs)
Touchscreen Non-touch
Buttons Volume button
Exit button
Brightness button
Mode-switching button
Power button
Menu button
Mounting Supports VESA mount (100mm)
Compatible Tiny ThinkCentre Tiny, ThinkCentre Nano, and ThinkStaion Tiny
Camera RGBIR camera
Speaker Stereo speakers, 2W x2
Microphone Dual array microphone
Power Adapter 170W 88% Adapter
Display Ram / Storage / Card Slot None / None / None
Rear Ports 1x HDMI-in
1x power connector
1x USB upstream port
1x DisplayPort
Left Ports 2x USB 3.1 Gen 1 (on TIO)
Side ports offered by installed Tiny (on Tiny)
1x headphone / microphone combo jack (on TIO)
USB Port 2 x USB3.1 Gen1 (only available when a Tiny is installed or a PC is
connected)
Multiple Input DP, HDMI
Wireless / Ethernet / Bluetooth None / None / None
Monitor Cable Undetachable 3-in-1 cable (Power connecter, USB [supports USB 3.1
Gen1 / USB 2.0], DisplayPort)
