Startech 15m Active Displayport Cable - Displayport To Displayport - Active Dp Cable - Male To

SKU
253730
Brand
MPN
DISPL15MA
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$177.00
Buy Now And Earn 177 Reward Points!

QUICK OVERVIEW

Male - 15 meter Long Displayport Cable - 2560x1600 DISPL15MA

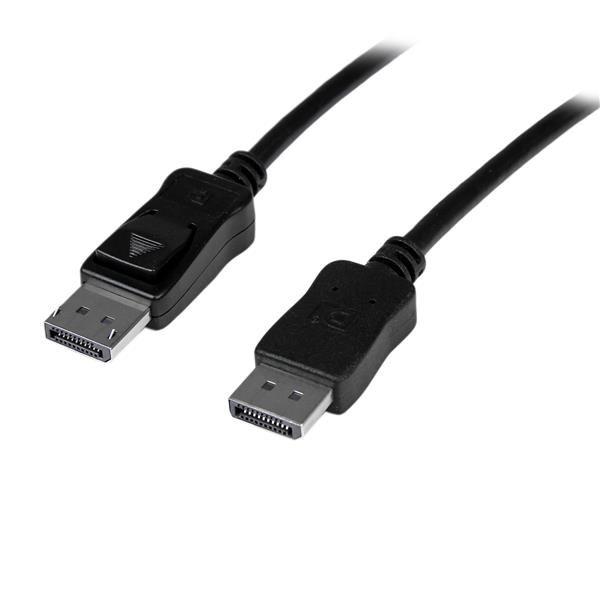

The DISPL15MA 15m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 50 feet (15m) between your DisplayPort-enabled devices - more than double the DisplayPort connection distance limitation of 16ft, with no signal loss.

This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.

The 15m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.

This 15-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.

Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.

The StarTech.com Advantage
  • No DisplayPort signal loss, even at a distance of up to 50 feet (15 meters)
  • Easier installations with enhanced cable flexibility
  • Prevent accidental disconnections with latched connector
Physical Characteristics
ColorBlack
Connector StyleStraight
Product Length15 m [49.2 ft]
Product Weight642 g [22.7 oz]
Wire Gauge32 AWG
What's in the Box
Included in Package15m Active DisplayPort? Cable - M/M
Physical Characteristics
Cable Length15 m [49.2 ft]
Packaging Information
Shipping (Package) Weight650 g [22.9 oz]
Package Quantity1
Hardware
Number of Conductors19
Fire RatingCMG Rated (General Purpose)
Connector PlatingNickel
Cable Shield TypeAluminum-Mylar Foil with Braid
Cable Jacket TypePVC - Polyvinyl Chloride
Environmental
Storage Temperature-20?C to 70?C (-4?F to 158?F)
Operating Temperature0?C to 45?C (32?F to 113?F)
Connector(s)
Connector BDisplayPort (20 pin) Male
Connector ADisplayPort (20 pin) Male Latching
