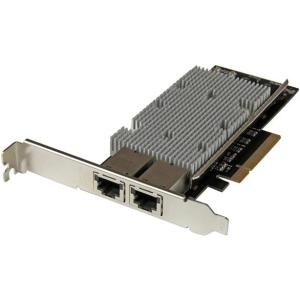

Startech 2-port Pci Express 10gbase-t Ethernet Network Card - 10gbe Network Interface Card With

SKU
211194
Brand
MPN
ST20000SPEXI
Warranty
Standard Manufacturer's Warranty
Availability
Preorder (Contact Us)
Freight Estimate
$720.00
Buy Now And Earn 720 Reward Points!

QUICK OVERVIEW

Intel X540 Chip - PCIe 10g NIC w/ Dual 100/ 1000/ 10G RJ45 Ports - 10GBase-T Network Adapter ST20000SPEXI

Add two 10 Gigabit Ethernet ports (10Gbps) to a client, server or workstation through one PCI Express slot. Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.

Versatile and cost effective

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It's a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, Wake-On LAN and Auto-MDIX.

Reliable, high-performance connectivity

This 2-port PCI Express 10GBase-T network card features the Intel® X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support.

Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x4 or higher) PCI Express slot.

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.

The ST20000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Product Name 2 Port PCIE 10GBASE-T Ethernet Network Card
Manufacturer Part Number ST20000SPEXI
Packaged Quantity 1
Product Type 10Gigabit Ethernet Card
Interfaces/Ports
Host Interface PCI Express x4
Total Number of Ports 2
Number of Network (RJ-45) Ports 2
Media & Performance
Media Type Supported Twisted Pair
Network & Communication
Network Technology 10GBase-T
Physical Characteristics
Form Factor Plug-in Card
Height 4.7"
Width 0.7"
Depth 6"
Warranty
Limited Warranty 2 Year
Miscellaneous
Package Contents
  • 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
  • 1 x low-profile Bracket
  • 1 x Instruction Manual
Device Supported Server
Green Compliant Yes
Green Compliance Certificate / Authority RoHS

WEEE

Other Information
Full Product Specifications Click to view
Stock Details
Manufacturer StarTech.com
Manuf Part# ST20000SPEXI
Connector(s)
Connector Type(s)PCI Express x8 Male
External PortsRJ-45 Female
Environmental
Humidity20~80% RH
Operating Temperature5?C to 50?C (41?F to 122?F)
Storage Temperature-20?C to 60?C (-4?F to 140?F)
Hardware
Bus TypePCI Express
Card TypeStandard Profile (LP bracket incl.)
Chipset IDIntel - X540
Industry StandardsIEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3az (EEE - Energy Efficient Ethernet)
PCI Express Rev 2.0
InterfaceRJ45 (10 Gigabit Ethernet)
Port StyleIntegrated on Card
Ports2
Indicators
LED IndicatorsLink Activity
Link Speed
Packaging Information
Shipping (Package) Weight250 g [8.8 oz]
Performance
Auto MDIXYes
Compatible Networks100/1000/10000 Mbps (10Gb)
Full Duplex SupportYes
Jumbo Frame Support15K max.
Maximum Data Transfer Rate20Gbps (full-duplex), 10Gbps (half-duplex)
Promiscuous ModeYes
Supported ProtocolsIEEE 802.3ad (link aggregation), IEEE 802.1q (VLAN tagging)
Physical Characteristics
ColorBlack
Product Height120 mm [4.7 in]
Product Length163 mm [6.4 in]
Product Weight160 g [5.6 oz]
Product Width20 mm [0.8 in]
Software
OS CompatibilityWindows? 7, 8, 8.1, 10
Windows Server? 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 4.11.x LTS versions only
ESXi 5.1/5.5
Special Notes / Requirements
System and Cable RequirementsAvailable PCI Express x8 slot
What's in the Box
Included in Packageinstruction manual
low-profile bracket
PCI Express 10GBase-T Ethernet card

Now, you can add 10 GbE networking, while minimizing your deployment costs. This 10Gbase-T network card (NIC) lets you add two RJ45 ports through a single PCI Express slot, to deliver reliable high-speed network connections to your workstations and servers without draining your budget.

Versatile and cost effective

Compatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. It?s a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports, with support for advanced features such as VLAN tagging, jumbo frames, and Auto-MDIX.

Reliable, high-performance connectivity

This 2-port PCI Express 10GBase-T network card features the Intel® X540 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The X540 chipset provides many advanced features including Intel® Virtualization Technology for connectivity and PXE network boot support.

Compliant with IEEE 802.3/u/ab standards, the network card delivers a dependable way to upgrade or replace your existing network ports with dual 100/1000/10G compatible RJ45 ports, providing throughput capability of up 10Gbps in each direction (20Gbps total). It connects through a single, four-lane (x4 or higher) PCI Express slot.

Easy installation

With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped for installation in a full-sized chassis, and includes a low-profile/half-height installation bracket that you can use as needed.

The ST20000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
