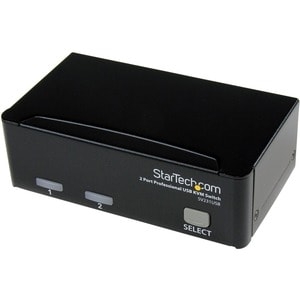

Startech 2 Port Professional Usb Kvm Switch Kit With Cables Sv231usb
Overview
The SV231SUB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of two Mac or PC computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The 2 Port KVM switch includes 2 USB KVM cables, providing a complete out-of-the-box KVM solution saving you time and money. An integrated 3 port USB hub allows you to share connected USB peripherals between connected computers as though they were connected directly. A compact form factor design and rear-port connections to master and slave computers minimizes disruption to your workspace.
A cross-platform solution, this OS independent KVM switch supports high resolution applications up to 1920x1440, and provides a smooth operating experience when controlling mixed (Windows/Mac/Linux) environments.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
The StarTech.com Advantage
- Included USB KVM cables provide a complete, ready to use KVM solution saving you time and money
- Compact, USB powered design saves time, space, and power
- Integrated USB 2.0 hub allows the user to have full multimedia control and share USB peripherals eliminating the expense of duplicate devices
Technical Specifications
| PRODUCT NUMBERS | ||
|---|---|---|
| Dell Harmony | A7069153 | |
| TechData Dis | 10920158 | |
| ASI | 16468 | |
| D and H | SV231USB | |
| Ingram Micro USA | 071610 | |
| Synnex US | STA-SV231USB | |
| UPC Code | 065030789196 | |
| WARRANTY INFORMATION | ||
|---|---|---|
| Warranty | 3 Years | |
| HARDWARE | ||
| Audio | No | |
| Cables Included | Yes | |
| Daisy-Chain | No | |
| KVM Ports | 2 | |
| Number of Monitors Supported | 1 | |
| PC Interface | USB | |
| PC Video Type | VGA | |
| Rack-Mountable | No | |
| U Height | 1U | |
| PERFORMANCE | ||
| Auto Scan | 3, 8, 15 & 30 seconds | |
| DVI Support | No | |
| Hot-Key Selection | No | |
| IP Control | No | |
| Maximum Analog Resolutions | 1920 x 1440 | |
| Maximum Cable Length | 15 ft [4.6 m] | |
| Maximum Number of Users | 1 | |
| MTBF | 111,000 Hours | |
| On-Screen Display | No | |
| Port Selection Support | Push Button | |
| CONNECTOR(S) | ||
| Console Interface(s) | 1 - VGA (15 pin, High Density D-Sub) Female | |
| 3 - USB Type-A (4 pin) USB 2.0 Female | ||
| Host Connectors | 2 - USB B (4 pin) Female | |
| 2 - VGA (15 pin, High Density D-Sub) Male | ||
| SOFTWARE | ||
| OS Compatibility | OS independent; No software or drivers required | |
| SPECIAL NOTES / REQUIREMENTS | ||
| Note | This KVM supports the use of VGA cables up to 100ft in length - active extension required for USB to achieve that distance | |
| POWER | ||
| Center Tip Polarity | Positive | |
| Input Current | 0.4A | |
| Input Voltage | 110V-240V AC | |
| Output Current | 2A | |
| Output Voltage | 5 DC | |
| Plug Type | N | |
| Power Consumption (In Watts) | 10 | |
| Power Source | AC Adapter Included | |
| PHYSICAL CHARACTERISTICS | ||
| Cable Length | 6 ft [1.8 m] | |
| Color | Black | |
| Enclosure Type | Steel | |
| Product Height | 1.6 in [40 mm] | |
| Product Length | 4.9 in [124 mm] | |
| Product Weight | 14.8 oz [420 g] | |
| Product Width | 2.8 in [70 mm] | |
| PACKAGING INFORMATION | ||
| Shipping (Package) Weight | 3 lb [1.3 kg] | |
| WHAT'S IN THE BOX | ||
| Included in Package | 1 - 2 Port USB KVM Switch | |
| 2 - 2 IN 1 USB/VGA Cables | ||
| 1 - Power Adapter | ||
| 1 - Manual | ||
