Aten 2-port Usb Vga Cable Kvm Switch Cs22u-at

Rated 2.4/5 based on 16 customer reviews

SKU: 236289

Brand: Aten

Manufacturer Link

MPN: CS22U-AT

Manufacturer Product Link

Warranty: 1 Year Manufacturer's return to base

Availability: Preorder 2-3 weeks

Freight Estimate:

$43.00
Buy Now And Earn Reward Points!
Qty:

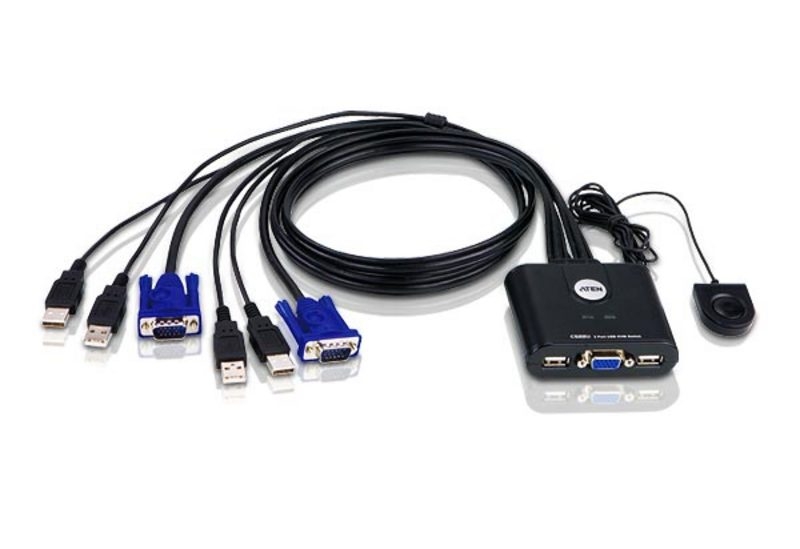

2-Port USB VGA Cable KVM Switch with Remote Port Selector
CS22U


The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.
The CS22U's compact all-in-one design makes it ideal for multiplatform desktop applications that require high resolution video.
  • One USB console controls two USB computers
  • Supports multifunction mice
  • Multiplatform support - Windows, Mac, Linux and Sun
  • USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Non-powered
Computer Connections 2
Port Selection Remote Port Selector
Connectors
Console Ports 2 x USB Type A Female (Black)
1 x HDB-15 Female (Blue)
KVM Ports 4 x USB Type A Male (Black)
2 x HDB-15 Male (Blue)
LEDs
Selected 2
Cable Length
Computer 0.9 m
Remote Port Selector 1.8 m
Video 2048 x 1536, DDC2B
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.30 kg ( 0.66 lb )
Dimensions (L x W x H) 8.24 x 7.01 x 2.46 cm
(3.24 x 2.76 x 0.97 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
The CS22U is a 2-port USB Cable KVM Switch that provides a simple and quick method of selecting computers - a built-in remote port selector. This allows the CS22U unit to be hidden from sight, while the remote port selector can be placed conveniently on the desktop.

The CS22U's compact all-in-one design makes it ideal for multiplatform desktop applications that require high resolution video.


  • One USB console controls two USB computers
  • Supports multifunction mice
  • Multiplatform support - Windows, Mac, Linux and Sun
  • USB mouse port can be used for USB 1.1 hub ad USB 1.1 peripheral sharing
  • Superior video quality - up to 2048 x 1536; DDC2B
  • Non-powered
