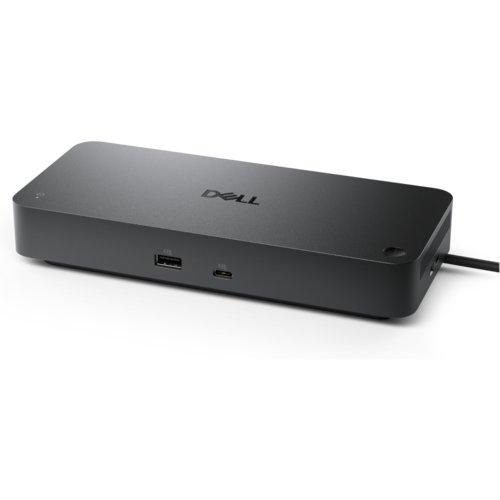

Dell Pro Thunderbolt 5 Smart Dock - SD25TB5 210-BSJB
Future-proof your productivity
Maximise your productivity on a Thunderbolt 5 smart dock, built for seamless multitasking using Gen AI tools across up to four 4K 120Hz displays. Featuring extended power range, this smart dock delivers up to 300W of power over a single USB-C cable to meet the demands of the highest performance AI PCs. Modern ports ensure a wide range of peripheral connectivity.
More manageable and secure
Elevate the IT management experience by directly managing your smart docks from the Dell Device Management Console - no PC connection or software required.
More manageable commercial dock
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
More secure smart dock
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Smart Dock.
Effortless maintenance
Remotely configure, deploy and update Dell Pro Smart Docks over Wi-Fi without the user connecting to a PC.
Unlock out-of-band management on select Intel vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt from the connected dock.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
Designed for sustainability
The Dell Pro Thunderbolt 5 Smart Dock is built with post-consumer recycled materials and packaged with recycled or renewable packaging.
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Warranty | |
| Additional Warranty Information |
|
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 330 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Weight (Approximate) | 632 g |
| Height | 205 mm |
| Width | 90 mm |
| Depth | 35.3 mm |
| Software | |
| Operating System Supported | ChromeOS 141 |
| macOS | |
| Windows 11 | |
| Ubuntu 24.04 | |
| Windows 10 | |
| Red Hat Enterprise Linux 9.7 | |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 210-BSJB |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Model | SD25TB5 |
| Product Name | Pro Thunderbolt 5 Smart Dock - SD25TB5 |
| Product Line | PRO |
| Brand Name | Dell |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 5 |
| Interfaces | Thunderbolt 5 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Thunderbolt | Yes |
| Number of DisplayPorts | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1, 1 x USB-C 3.2 Gen 2 (10 Gbps) |
| DisplayPort Version | 2.1 |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 4 |
| Thunderbolt Ports Quantity | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| USB Type-A | Yes |
| Technical Information | |
| Cable Length | 83 cm |
| Device Supported | Desktop PC |
| Notebook | |
| Connectivity Technology | Wired |
| Features | LED Power Indicator |
| Power Delivery Pass-through | |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Number of Displays Supported | 4 |
| Supported Resolutions | 7680 x 4320 |
| 6144 x 3456 | |
| 5120 x 2160 | |
| 3840 x 2160 | |
| 2560 x 1440 | |
| 3440 x 1440 | |
| Screen Mode Supported | QHD @ 60Hz |
| 8K @ 60Hz | |
| 6K @ 60Hz | |
| 5K @ 60Hz | |
| 4K @ 60Hz | |
| 4K @ 120Hz | |
| WQHD @ 60Hz | |
| Management Features | MAC Address Pass-through |
| Intel AMT over Thunderbolt with select Intel vPro PCs | |
| Dock Power Button Sync | |
| Dell Command Update (DCU) | |
| WLAN to LAN Switch | |
| Wake-on-LAN | |
| PXE Boot | |
| Port Disablement | |
| Kernel Direct Memory Access (DMA) Protection | |
| Power Delivery | 240W (non-Dell Systems) |
| 300W (Dell Systems) | |
| Video Resolution Details | 4K - 60 Hz (Quad Display) |
| 4K - 60 Hz (Dual Display) | |
| 4K - 120 Hz (Triple Display) | |
| 4K - 120 Hz (Quad Display) | |
| 6K - 60 Hz (Dual Display) | |
| 8K - 60 Hz (Single Display) | |
| QHD - 60 Hz (Quad Display) | |
| WQHD - 60 Hz (Triple Display) | |
| 5K - 60 Hz (Single Display) | |
| 4K - 60 Hz (Triple Display) | |
| Security Slot Type | Noble Wedge Security Slot |
| Kensington Security Slot | |
| Power Delivery Details |
|
