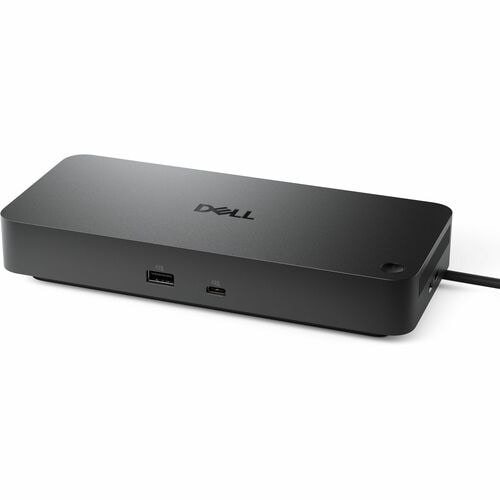

Dell Pro Thunderbolt 4 Dock WD25TB4 210-BTHF
Power AI productivity
Maximise your AI PC productivity by seamlessly using Gen AI tools across up to four 4K 60Hz displays. Stay powered with up to 130W power delivery and connect all your peripherals effortlessly.
Accelerate manageability
Enhance IT efficiency across the modern workspace.
Improved manageability
Manage your dock through the Dell Device Management Console, using the Dell Display and Peripheral Manager along with the Dell Device Management Agent installed on your PC.
Simplify firmware updates
Reduce IT complexity by deploying a single firmware file across workspaces. Minimise end-user disruption with silent firmware updates, executed upon dock disconnection.
Unlock out-of-band management on select Intel® vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt via the connected dock.
Work with confidence
Enhance your docking experience across brands with universally compatible features including MAC Address Pass-Through and Power Button Sync.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Miscellaneous | |
| Package Contents |
|
| Kensington Security Slot | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Weight (Approximate) | 567 g |
| Height | 205 mm |
| Width | 90 mm |
| Depth | 35.3 mm |
| Software | |
| Operating System Supported | ChromeOS 137 |
| Windows 11 | |
| Windows 10 | |
| Ubuntu 24.04 | |
| Red Hat Enterprise Linux 9.6 | |
| macOS | |
| Host Software | Host Software (Windows):
Cloud Management (via host PC software) Dell Device Management Console enables:
|
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | 210-BTHF |
| Manufacturer Website Address | http://www.dell.com.au |
| Manufacturer | Dell Technologies |
| Product Model | WD25TB4 |
| Product Name | Pro Thunderbolt 4 Dock - WD25TB4 |
| Product Line | Pro Dock |
| Brand Name | Dell |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 4 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of HDMI Ports | 1 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Thunderbolt | Yes |
| Number of DisplayPorts | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4 |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 2 |
| Number of USB Type-A Ports | 4 |
| Thunderbolt Ports Quantity | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of Thunderbolt 4 Ports | 2 |
| USB Type-A | Yes |
| Technical Information | |
| Cable Length | 83 cm |
| Device Supported | Monitor |
| Notebook | |
| Desktop PC | |
| Connectivity Technology | Wired |
| Features | Indicator Light |
| Power Delivery Pass-through | |
| LED Power Indicator | |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Number of Displays Supported | 4 |
| Supported Resolutions | 7680 x 4320 |
| 6144 x 3456 | |
| 3840 x 2160 | |
| 5120 x 2160 | |
| 2560 x 1440 | |
| 3440 x 1440 | |
| Screen Mode Supported | 5K @ 60Hz |
| WQHD @ 60Hz | |
| 8K @ 60Hz | |
| QHD @ 60Hz | |
| 6K @ 60Hz | |
| 4K @ 60Hz | |
| Management Features | WLAN to LAN Switch |
| PXE Boot | |
| Firmware update on disconnect | |
| Port Disablement | |
| MAC Address Pass-through | |
| Kernel Direct Memory Access (DMA) Protection | |
| Intel AMT over Thunderbolt with select Intel vPro PCs | |
| Host PC based firmware update | |
| Wake-on-LAN | |
| Dell Command Update (DCU) | |
| Dock Power Button Sync | |
| Power Delivery | 96W (non-Dell Systems) |
| 130W (Dell Systems) | |
| Video Resolution Details | 5K - 60 Hz (Single Display) |
| WQHD - 60 Hz (Triple Display) | |
| 4K - 60 Hz (Dual Display) | |
| 4K - 60 Hz (Quad Display) | |
| 6K - 60 Hz (Dual Display) | |
| QHD - 60 Hz (Quad Display) | |
| 4K - 60 Hz (Triple Display) | |
| 8K - 60 Hz (Single Display) | |
| Security Slot Type | Noble Wedge Security Slot |
| Kensington Security Slot | |
