DESCRIPTION

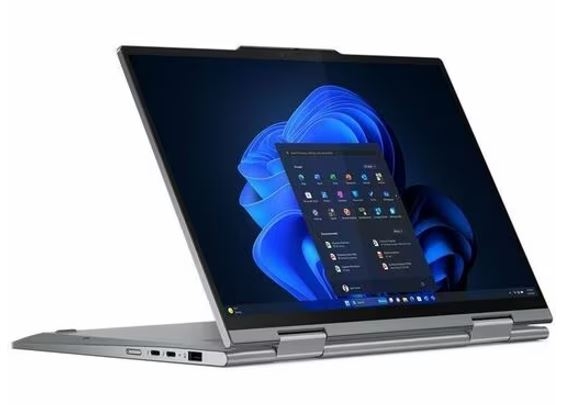

LENOVO ThinkPad X1 Yoga 14" WUXGA TOUCH IR Intel AI U5-125U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics Fingerprint Thunderbolt 3yr PREM 1.3kg

Processor
Intel® Core™ Ultra 5 125U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.3GHz, 12MB
AI PC Category
AI PC
NPU
Integrated Intel® AI Boost, up to 11 TOPS
Graphics
Integrated Intel® Graphics
Chipset
Intel® SoC Platform
Memory
16GB Soldered LPDDR5x-6400
Memory Slots
Memory soldered to systemboard, no slots, 8-channel
Max Memory
16GB soldered memory, not upgradable
Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support
One drive, up to 2TB M.2 2280 SSD
Storage Slot
One M.2 2280 PCIe® 4.0 x4 slot
Card Reader
None
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos®
Camera
FHD 1080p + IR Discrete with Privacy Shutter
Microphone
2x, Array
Battery
Integrated 57Wh
Power Adapter
65W USB-C® (3-pin)
DESIGN
Display
14" WUXGA (1920x1200) IPS 400nits Anti-reflection / Anti-smudge, 100% sRGB, 60Hz, Low Power, Touch
Touchscreen
OGS, 10-point Multi-touch
Keyboard
Backlit, English
Touchpad
Trackpad
Case Color
Grey
Case Material
Aluminium (Top), Aluminium (Bottom)
Pen
Lenovo® Slim Pen
Dimensions (WxDxH)
312.80 x 217.65 x 15.49 mm (12.31 x 8.57 x 0.61 inches)
Weight
Starting at 1.35 kg (2.97 lbs)
SOFTWARE
Operating System
Windows® 11 Pro, English
Bundled Software
Intel® Connectivity Performance Suite
CONNECTIVITY
Ethernet
No Onboard Ethernet
WLAN + Bluetooth
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3
WWAN
Non-WWAN
SIM Card
None
NFC
None
Standard Ports
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)
None
Docking
Various docking solutions supported via Thunderbolt™ / USB-C®.
For more compatible docking solutions, please visit Docking for ThinkPad® X1 2-in-1 Gen 9
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0 Enabled
Fingerprint Reader
Touch Style, Match-on-Chip, in Keyboard Key
Physical Locks
Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security
Camera privacy shutter
IR camera for Windows® Hello (facial recognition)
Ultrasonic Human Presence Detection (FHD 1080p + IR camera models)
MANAGEABILITY
System Management
Non-vPro®
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications
Intel® Evo™ Platform
Eyesafe® Certified 2.0
Mil-Spec Test
MIL-STD-810H military test passed
