DESCRIPTION

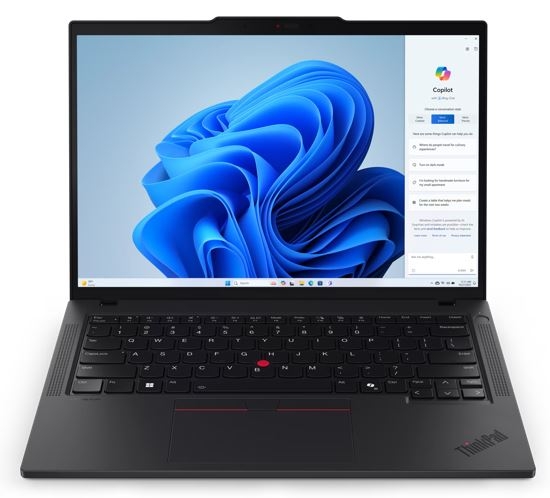

LENOVO ThinkPad T14 G5 AMD R7-8840U 14" WUXGA 16GB DDR5 512GB SSD WIN 11 PRO AMD Graphics WIFI6E Fingerprint 3yr PREM 1.4kg

PERFORMANCE
Processor AMD Ryzen™ 7 PRO 8840U (8C / 16T, 3.3 / 5.1GHz, 8MB L2 / 16MB L3)
AI PC Category AI PC
NPU Integrated AMD Ryzen™ AI, up to 16 TOPS
Graphics Integrated AMD Radeon™ 780M Graphics
Chipset AMD SoC Platform
Memory 2x 8GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support One drive, up to 2TB M.2 2280 SSD
Storage Slot One M.2 2280 PCIe® 4.0 x4 slot
Card Reader None
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio™
Camera 5.0MP + IR Discrete with Privacy Shutter
Microphone 2x, 360°
Battery 52.5Wh
Power Adapter 65W USB-C® (3-pin)
DESIGN
Display 14" WUXGA (1920x1200) IPS 400nits Anti-glare, 45% NTSC, 60Hz, DBEF5
Touchscreen None
Keyboard Backlit, English
Case Color Black
Case Material PC + 20% CF (Top), PC + 20% CF (Bottom)
Pen Pen Not Supported
Dimensions (WxDxH) 315.9 x 223.7 x 17.7 mm (12.44 x 8.81 x 0.7 inches)
Weight Starting at 1.39 kg (3.06 lbs)
SOFTWARE
Operating System Windows® 11 Pro, English
Bundled Software None
CONNECTIVITY
WLAN + Bluetooth Qualcomm® Wi-Fi® 6E NFA725A, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
SIM Card None
Ethernet 100/1000M (RJ-45)
NFC None
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
2x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 and DisplayPort™ 2.1
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
Optional Ports (configured) None
Docking Various docking solutions supported via Thunderbolt™ / USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad T14 Gen 5 (AMD)
SECURITY & PRIVACY
Smart Card Reader None
Security Chip Discrete TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security Camera privacy shutter (camera models)
IR camera for Windows® Hello (facial recognition)
MANAGEABILITY
System Management DASH
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 3Y Premier Support Upgrade from 1Y Courier/Carry-in, CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR® 8.0
EPEAT™ Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Mil-Spec Test MIL-STD-810H military test passed
