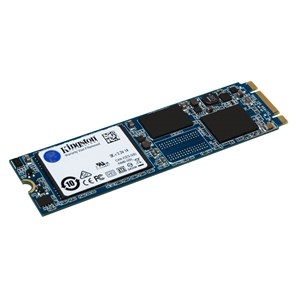

Kingston 240g Ssdnow Uv500 M.2 Suv500m8/240g

SKU
263279
Brand
Kingston
Manufacturer Link
Manufacturer Product Link
Warranty
1 Year Manufacturer's return to base

No Longer Available

$0.00
Buy Now And Earn 0 Reward Points!
Add to Compare

UV500 SSD

Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074 controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500’s available in multiple capacities from 120GB–1.92TB1 giving you options to meet your system’s needs.
  • 10X faster than a 7200RPM hard drive2
  • AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0
  • Available in multiple form factors (2.5”/M.2/mSATA)
  • Multiple capacities up to 1.92TB1

Model

Brand
Kingston
Series
UV500
Model
SUV500M8/240G
Used For
Consumer

Details

Form Factor
M.2 2280
Capacity
240GB
Memory Components
3D TLC
Interface
SATA III
Controller
Marvell Dean

Performance

Max Sequential Read
Up to 520 MBps
Max Sequential Write
Up to 500 MBps
4KB Random Read
Up to 79,000 IOPS
4KB Random Write
Up to 25,000 IOPS
MTBF
1,000,000 hours

Features

Features
Kingston's UV500 SSD dramatically improves your system's responsiveness with incredible boot, loading, and transfer times compared to mechanical hard drives. It uses a Marvell Dean controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES Hardware-based encryption and support for TCG Opal 2.0 security management solutions. The UV500's available in multiple capacities from 120GB - 960GB giving you options to meet your system's needs.

10X faster than a 7200 RPM hard drive
AES 256-bit Hardware Encryption Self-Encrypting Drive (SED) and TCG Opal 2.0
Available in multiple form factors (2.5"/M.2/mSATA)
Multiple capacities up to 960GB
Total Bytes Written (TBW): 100TB

Environmental

Power Consumption (Idle)
0.195W
Power Consumption (Active)
1.17W (MAX) Read / 2.32W (MAX) Write
Operating Temperature
0°C ~ +70°C
Storage Temperature
-40°C ~ +85°C
Max Vibration Resistance
Operating: 2.17G Peak (7 - 800 Hz)
Non-operating: 20G Peak (10 - 2000 Hz)

Dimensions & Weight

Height
3.50mm
Width
22.00mm
Depth
80.00mm
Weight
6.70g
Kingston SUV500M8/240G 240Gb M.2 SSD

Kingston’s UV500 SSD dramatically improves your system’s responsiveness with incredible boot, loading and transfer times compared to mechanical hard drives. It uses a Marvell 88SS1074  controller and 3D NAND Flash to power through daily tasks and improve productivity. UV500 also provides end-to-end data protection using 256-bit AES hardware-based encryption and support for TCG Opal 2.0 security management solutions.
