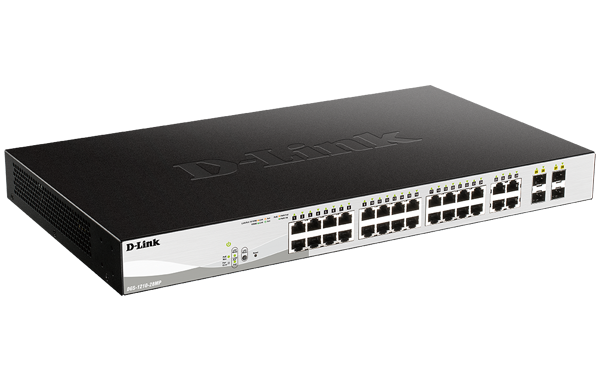

D-link 28-port Gigabit Websmart Poe Switch With 24 Rj45 And 4 Sfp Ports. Poe Budget 370w. Dgs-1210-28mp
28-Port Gigabit Smart Managed 370W PoE Switch with 28 RJ45 and 4 SFP (Combo) Ports
DGS-1210-28MP
The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network. The DGS-1210-28MP is a PoE Smart Managed Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP/RJ45 Combo ports.
Seamless Integration
The DGS-1210 Series includes a wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps combo ports, and 100/1000 Mbps SFP ports, allowing you to choose the most suitable media type for your requirements. The DGS-1210-28MP switch comes with 24 PoE Gigabit copper ports capable of connecting to existing Cat.5 (or higher) twisted-pair cables. Additionally, the last 4 ports of the DGS-1210-28MP offer either RJ45 or SFP connectivity and therefore provide an option for upstream or downstream server connections via fibre interface. Using the default presets, the administrator can quickly set up the switch without reconfiguring any settings.
PoE Support
All DGS-1210 Series PoE switches include support for IEEE 802.3af/at and higher power budgets, allowing more PoE devices to be powered by the switch and for devices to be installed in remote locations without immediate access to power outlets. The DGS-1210-28MP delivers Power over Ethernet (PoE) capabilities, making deployment with IP cameras, VoIP phones, and access points much easier. The DGS-1210-28MP complies with the 802.3af (PoE) and 802.3at (PoE+) standards and offers an extended PoE budget of 370 Watts.
Extensive Layer 2 Features
Equipped with a complete lineup of L2 features, the DGS-1210-28MP includes IGMP Snooping, Port Mirroring, Rapid Spanning Tree and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.
Automatic Confguration
The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs.
Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1x port-based authentication, allowing the network users to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210-28MP switch includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARPmessages to the network. To prevent ARP Spoofing attacks, the switch uses Packet Control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.
Versatile Management
The DGS-1210-28MP can be managed with the D-Link Network Assistant Utility that enables administrators to remotely control their network down to the port level. The D-Link Network Assistant Utility allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them on-screen for instant access. This allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades. The DGS-1210 Series also supports D-View and Command Line Interface (CLI) through Telnet. D-View 7.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.
| Switch Type : | Layer2+ IP Routing |
| Type of Port Required : | Gigabit Copper|Gigabit Fibre |
| Number of Ports : | 24 - 28 |
| PoE Type Required : | PoE|PoE+|Extended PoE Budget |
| High Speed Stacking : | No |
| Design : | Desktop|Rackmountable |
| 1000Base-T ports : | 28 ports |
| SFP ports : | 4 Ports (Combo) |
| PoE ports : | 24 Ports |
| PoE Budget : | 370 Watts |
| Switching Capacity : | 56 Gbps |
| QoS : | Yes |
| Spanning Tree Protocol : | Yes |
| Link Aggregation : | Yes |
| VLAN : | 256 Groups |
| Surveillance VLAN : | Yes |
| Jumbo Frame : | 10000 bytes |
| Voice VLAN : | Yes |
| IGMP Snooping : | Yes |
| 802.1X Access Control : | Yes |
| DHCP Server Screening : | Yes |
| SNMP : | Yes |
| Cable Diagnostics : | Yes |
| Energy Saving Technology : | EEE Compliant|D-Link Green |
| 19" Rack Mountable : | Yes |
| Fans : | 2 |
| Built-in PSU : | Yes |
| Dimensions (Size) : | 440 x 250 x 44 mm |
| Web-based GUI : | Yes |
| Command Line Interface : | Yes |
| Types of ports : | SFP Ports|Gigabit Ports |
| Static Routing : | Yes |
| Switch Series : | DGS-1210 Series |
