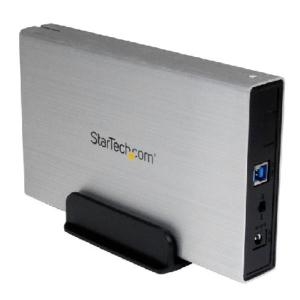

Startech 3.5in Aluminum Usb 3.0 External Sata Iii Ssd/hdd Enclosure With Uasp - Portable Usb 3.0 225913

SKU
225913
Brand
MPN
S3510SMU33
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
$75.00
Buy Now And Earn 75 Reward Points!

QUICK OVERVIEW

3.5 SATA Hard Drive Enclosure - 3.5 HDD Enclosure - USB 3.0 Hard Drive Enclosure - Silver S3510SMU33

The S3510SMU33 USB 3.0 hard drive enclosure enables you to connect a 3.5in SATA hard drive through an available USB port.

With support for UASP, the enclosure performs up to 70% faster than conventional USB 3.0, when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

The HDD enclosure offers a versatile solution for increasing the storage/backup capabilities of your computer, with support for SATA I/II/III hard drives at capacities of up to 4TB. Plus, the enclosure features high-quality aluminum construction and a stylish silver design that looks great in any application.

To ensure compatibility with your computer system, the S3510SMU33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The S3510SMU33 USB 3.0 HDD enclosure is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.

The StarTech.com Advantage
  • Save time, with file transfers up to 70% faster than traditional USB 3.0 when used with a UASP-supported host
  • Maximum durability, with aluminum housing
Indicators
LED IndicatorsPower & Activity
Packaging Information
Shipping (Package) Weight0.8 kg [1.7 lb]
Performance
Max Drive CapacityCurrently tested with up to 4TB 7200 RPM hard drive
RAIDNo
Type and RateSATA III (6 Gbps)
USB 3.0 - 5 Gbit/s
UASP SupportYes
Physical Characteristics
ColorSilver
Enclosure TypeAluminum and Plastic
Product Height115.4 mm [4.5 in]
Product Length191.5 mm [7.5 in]
Product Weight324 g [11.4 oz]
Product Width31.4 mm [1.2 in]
Power
Center Tip PolarityPositive
Input Current0.6 A
Input Voltage100 ~ 240 AC
Output Current2 A
Output Voltage12 DC
Power Consumption (In Watts)24
Power SourceAC Adapter Included
Software
OS CompatibilityOS independent; No software or drivers required
Special Notes / Requirements
System and Cable RequirementsAvailable USB port
What's in the Box
Included in Package3.5? USB 3.0 SATA III HDD Enclosure
HDD Stand
Product Manual
Screw Kit
Universal Power Adapter (NA / UK / EU)
USB 3.0 Cable (1m)
Hardware
Number of Drives1
InterfaceUSB 3.0
Fan(s)No
Drive Size3.5in
Drive InstallationFixed
Compatible Drive TypesSATA
Chipset IDASMedia - ASM1053 - 6G
Environmental
Storage Temperature-10?C to 65?C (14?F to 149?F)
Operating Temperature0?C to 40?C (32?F to 104?F)
HumidityOperation Humidity: 10% ~ 90% RH
Storage Humidity: 5% ~ 95% RH
Connector(s)
Host ConnectorsUSB Type-B (9 pin) USB 3.0 Female
Drive ConnectorsSATA Data & Power Combo (7+15 pin) Receptacle

The S3510SMU33 USB 3.0 hard drive enclosure enables you to connect a 3.5in SATA hard drive through an available USB port.

With support for UASP, the enclosure performs up to 70% faster than conventional USB 3.0, when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.

The HDD enclosure offers a versatile solution for increasing the storage/backup capabilities of your computer, with support for SATA I/II/III hard drives at capacities of up to 4TB. Plus, the enclosure features high-quality aluminum construction and a stylish silver design that looks great in any application.

To ensure compatibility with your computer system, the S3510SMU33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The S3510SMU33 USB 3.0 HDD enclosure is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

UASP Speed Diagram

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

UASP Speed Diagram

Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
