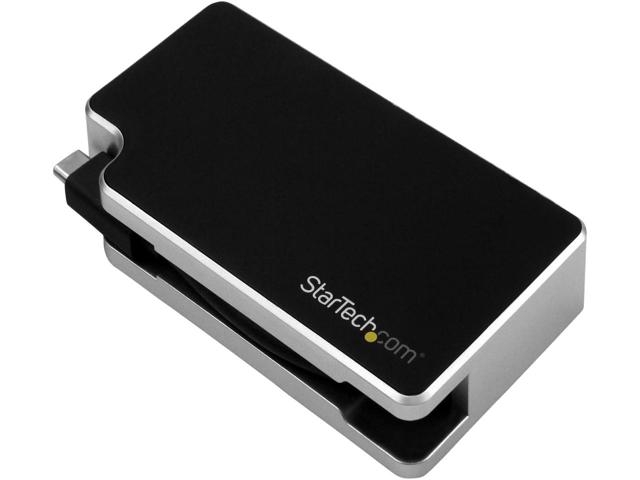

Startech Travel A/v Adapter: 3-in-1 Usb-c To Vga Dvi Or Hdmi - 4k Cdpvgdvhdb
SKU
234827
Brand
MPN
CDPVGDVHDB
Warranty
Standard Manufacturer's Warranty
$93.00
Buy Now And Earn 93 Reward Points!
Keep this compact converter with your laptop while you’re traveling, to connect to virtually any monitor, television or projector
| .jpg) |
Stylish connectivity for your USB-C laptopThis travel adapter comes with a built-in black USB-C cable and works well with your Dell XPS™, MacBook and any device that supports USB-C DP alt mode. |  |
 | All-in-one video connectivity, with travel in mindInstead of carrying three separate video adapters in your laptop bag, this 3-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop's USB Type-C port to almost any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office. |
Innovative, built-in cable managerThe adapter features a built-in cable fastener. Simply tuck the cable into place along the side of the adapter for quick and secure storage while you’re traveling to ensure the adapter is neatly stored in your travel bag. |  |
Applications
- Carry the adapter with you when you travel, and connect to almost any display
- Connect your BYOD Dell XPS, Chromebook Pixel, MacBook or other USB-C laptop or tablet to a provided VGA, DVI or HDMI display at work
- Connect a VGA, DVI or HDMI monitor to your USB-C laptop, to use as a secondary monitor
| Connector(s) | |
| Connector A | USB-C (24 pin) DisplayPort Alt Mode Male Input |
| Connector B | DVI-I (29 pin) Female Output |
| HDMI (19 pin) Female Output | |
| VGA (15 pin, High Density D-Sub) Female Output | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 5?C to 35?C (41?F to 95?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Active or Passive Adapter | Active |
| Adapter Style | Adapters |
| Chipset ID | Cypress - CYPD2120-24LQXIT Cypress - CY7C65217 Analogix - ANX9847FN-AA-R MegaChips - MCDP2850-BC |
| Converter Type | Travel A/V Adapters |
| Output Signal | DVI-D (DVI Digital) |
| HDMI | |
| VGA | |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Audio Specifications | HDMI output - 7.1 surround sound |
| General Specifications | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
| Maximum Analog Resolutions | 1920 x 1200 @ 60Hz |
| Maximum Digital Resolutions | 3840 x 2160 @ 30Hz |
| Supported Resolutions | HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720 DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720 |
| Video Revision | DisplayPort 1.2 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Accent Color | Black |
| Cable Length | 90 mm [3.5 in] |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 18 mm [0.7 in] |
| Product Length | 110 mm [4.3 in] |
| Product Weight | 67 g [2.4 oz] |
| Product Width | 60 mm [2.4 in] |
| Special Notes / Requirements | |
| Note | macOS 10.12.6 or later is required for your MacBook to support this product. |
| Your USB-C equipped host laptop must support video (DP alt mode) to work with this adapter. The adapter does not support USB Power Delivery. | |
| What's in the Box | |
| Included in Package | USB-C travel adapter |
