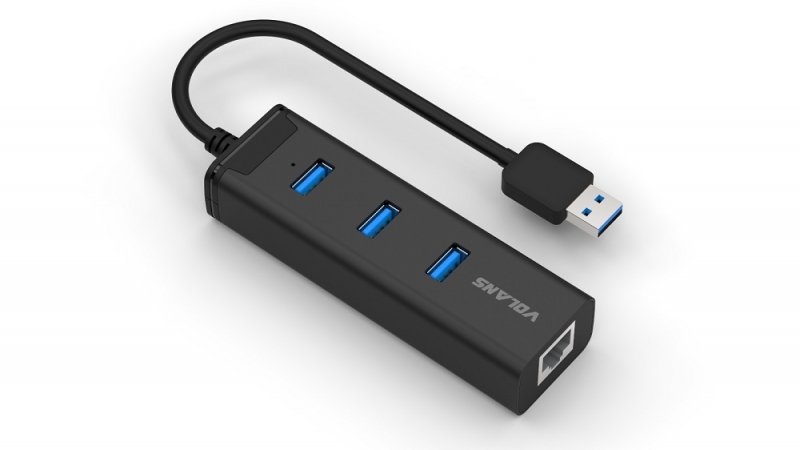

VOLANS 3-Port USB3.0 Aluminium Hub + RJ45 Gigabit Ethernet Adapter VL-HJ45
SKU
243158
Brand
MPN
VL-HJ45
Warranty
Standard Manufacturer's Warranty
$38.00
Buy Now And Earn 38 Reward Points!
Aluminium 3-Port USB3.0 Hub + RJ45 Gigabit Ethernet Adapter (HJ45)
The Volans aluminium 3-Port USB3.0 Hub + RJ45 Gigabit Ethernet Adapter (HJ45) is a perfect device for both on the go and desktop application. The 2-in-one device works as a 3-Port SuperSpeed USB 3.0 Hub and a Gigabit Ethernet Adapter. It gives you access to a Gigabit Ethernet Port for connecting your Laptop/Ultrabook/Tablet to a wired Ethernet network and also add 3 spare USB 3.0 ports, which can be used to connect HDD, Keyboard/Mouse, Printers, Phones, Tablets etc. The device is bus powered (host powered) with no external power supply required to run it.
Features
- USB3.0 male A to RJ45 10/100/1000 Gigabit Ethernet Adaptor with 3-port USB3.0 Hub
- The ideal companion for notebook, ultrabook and tablet PC with USB port
- Transfer speed USB3.0: theoretical 5Gbps. RJ45: 10/100/1000Mbps
- Built-in Over-voltage / Over-current / Leakage and Short-circuit protection unit
- LED power indicator light
Specification
| WARRANTY INFORMATION | |
|---|---|
| Warranty | 1 Year |
| HARDWARE | |
| Bus Type | USB 3.0 |
| Chipset ID | VIA – VL813 (USB 3.0) REALTECK – RTL8153 (LAN) |
| Fast-Charge Port(s) | No |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding | |
| USB 3.0 – Backward compatible with USB 2.0 and 1.1 | |
| Interface | USB 3.0 |
| RJ45 (Gigabit Ethernet) | |
| Ports | 3 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| PERFORMANCE | |
| Auto MDIX | Yes |
| Auto-Negotiation | Yes |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | Full duplex flow control |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Type and Rate | USB 3.0 – 5 Gbit/s |
| CONNECTOR(S) | |
| Connector Type(s) | 3 – USB Type-A (9 pin) USB 3.0 Female |
| 1 – RJ-45 Female | |
| 1 – USB Type-A (9 pin) USB 3.0 Male | |
| SOFTWARE | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.6 to 10.12 Chrome OS™ Linux 2.6.x to 4.4.x LTS versions only |
| SPECIAL NOTES / REQUIREMENTS | |
| Note | If connected to a USB 2.0 host port, performance may be limited |
| System and Cable Requirements | Available USB 3.0 port |
| INDICATORS | |
| LED Indicators | 1 – Link |
| 1 – Activity | |
| ENVIRONMENTAL | |
| Humidity | 0~85% RH (Non-Condensing) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 75°C (14°F to 167°F) |
| PHYSICAL CHARACTERISTICS | |
| Color | Black |
| Enclosure Type | Aluminum |
| Form Factor | Compact |
| WHAT’S IN THE BOX | |
| Included in Package | 1 – VL-HJ45 |
| 1 – Driver CD | |
| 1 – Instruction Manual | |
