AJAX TRANSMITTER 2Y 30675.18.NC3
SKU
432260
Brand
MPN
30675
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Special Price $84.00 Regular Price $97.00
Buy Now And Earn 84 Reward Points!

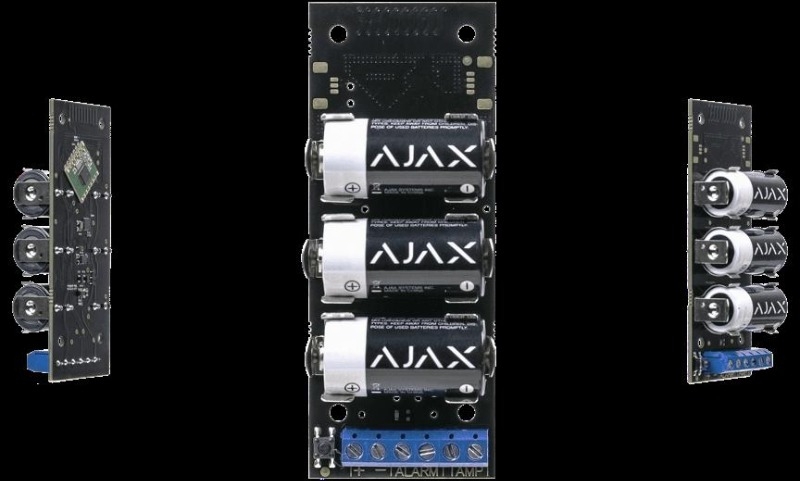

Wireless module for connection of outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices with wired output to the Ajax security system.
The device receives the activation signal from the detector via wired input and sends an alarm to the hub.
• Converts third-party detectors to the Ajax full-featured devices.
• It can be used as a power supply for third-party devices
• Operates at a temperature of 50°С to −25°С and humidity up to 75%
| Connecting a detector | ALARM and TAMPER (NO/NC) terminals |
| Mode for processing alarm signals from the detector | Pulse or Bistable |
| Power supply | 3 × CR123A, 3V batteries |
| Capability to power the connected detector | Yes, 3.3 V⎓ |
| Protection from dismounting | Accelerometer |
| Radio protocol for communication with hubs and range extenders | Jeweller |
| Compatibility | Operates only with all Ajax hubs, and radio signal range extenders |
| Communication range | Up to 1,600 m in an open space |
| Devices polling interval | 12–300 s |
| Operating temperature range | From –25°С to +50°С |
| Operating humidity | Up to 75% |
| Dimensions | 100 × 39 × 22 mm |
| Weight | 74 g |
| Service life | 10 years |
| Warranty | Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase and does not apply to the pre-installed battery. |
AJAX TRANSMITTER 2Y
