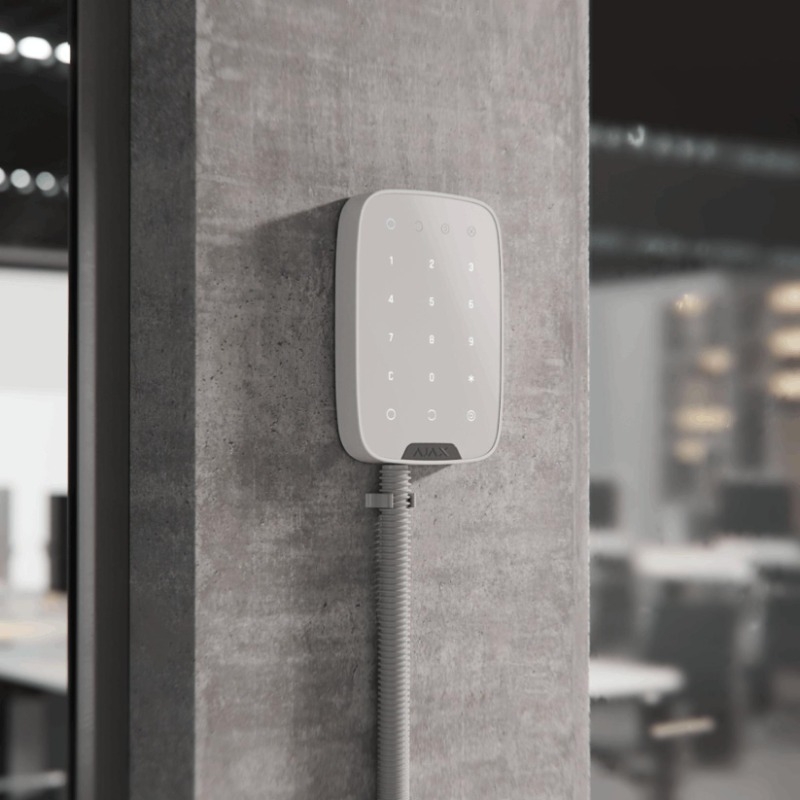

Wired touch keyboard KeyPad Fibra is an Ajax security system control device.
The device communicates with the control panel using the secure Fibra protocol, and the wired communication range is up to 2 kilometers when connected via a U/UTP cat.5 twisted-pair cable. The KeyPad Fibra wired touch keyboard allows you to control the security modes of the entire facility or individual groups, activate the Night mode and supports the “silent alarm” function — this is the ability to inform the security company that someone is forcing you to disarm the alarm. The siren will not react at the same time — you need to enter a pre-created password for such a situation instead of the usual one.
The wired security keypad supports both a shared duress code and a personal code — the second can be set individually in the user settings. The KeyPad Fibra wired alarm keypad also supports control of security modes without entering a code. To do this, you need to activate the "Arm without code" function in the settings.

KeyPad Fibra wired touch keyboard features
The KeyPad Fibra security keyboard has the following features: The "Function" button. The "Function" button on the KeyPad Fibra wired touch keyboard can work in 3 modes:

* No action — means that the button is disabled, and nothing will happen after pressing it.

* Alarm — after pressing the “Function” button, the security system will send an alarm signal to the central monitoring station of the security company (CMS), system users and activate the sirens.

* Suppress synchronous fire alarm — after pressing the "Function" button, the security system will disable the alarm from the FireProtect / FireProtect Plus fire detectors. The operation can be carried out only if the Synchronous alarm of fire detectors is enabled.

Setting up in two stages
Arming the security system using the KeyPad Fibra touch keyboard can be done in two steps. This process is similar to arming a security system using a personal or shared keypad code. The process must be completed either by re-arming using the Ajax SpaceControl control device, or by resetting the end sensor.

Blocking in case of invasion
If you enter the wrong code three times within one minute, the keyboard will be blocked for the time previously specified in the settings. During blocking of the device, the control panel will ignore all codes, and will notify alarm users about code selection attempts. The keyboard can be unlocked through the app by a PRO with administrator rights or by a user. After the time specified in the settings, the keyboard will unlock automatically.

Fibra data transfer protocol
To transmit alarms and events to the control panel, the wired keypad uses Fibra technology, a two-way communication protocol that provides reliable and fast communication between the control panel and devices connected to the security system. Fibra delivers alarms and events instantly, even if 100 devices are connected to the system thanks to the bus connection method. Fibra verifies every communication session with system devices and supports signal block encryption to prevent sabotage and keyboard substitution. The wire protocol provides for regular polling of devices by the control panel at a specified frequency, to control the quality of communication and to display the status of system devices in real time in Ajax applications.
