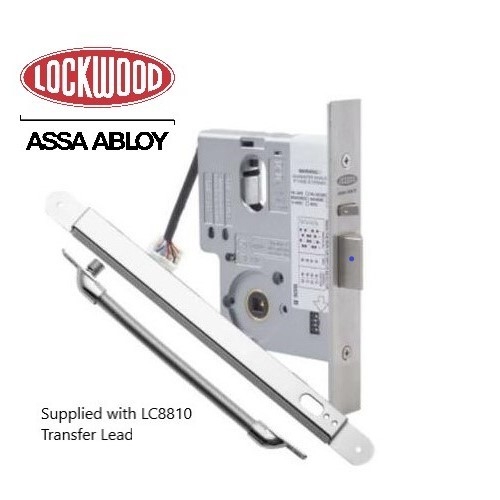

Lockwood 3570 series electric mortice lock, less cylinder and Includes the LWLC8810 cable transfer.

Suitable for commercial applications.

Monitoring includes dual key override, deadlatching, door closed, door locked, request to exit and reed switch.

The lock can be operated by push buttons, intercom systems and key switches; or integrated with electronic access control systems for use with higher security devices such as keypads or card readers.

3570ELM0SC:
• 3570 monitored electric mortice lock.
• Field selectable Fail Safe or Fail Secure function.
• 60mm backset, 89 and 127mm also available.
• Solenoid locking/unlocking of lever handles.
• Operating voltage 12-24Vdc.
• Operating Current:
• 500mA (max) 80mA holding @ 12Vdc
• 275mA (max) 50mA holding @ 24Vdc
• Includes 1.6 metre cable with 12 pin socket.
• Supplied with positive latching 12 pin plug emanating from the top of the lock on a short length of cable.
• Reversible for left and right hand doors opening in or out.
• Suits door thickness 32-50mm.
• Protection diode is included for back EMF suppression.
• Selectable on site for one or both lever handles being locked by solenoid without dismantling the lock.
• Reed switch located inside the housing.
• Conforms with Level D3 (durability) Australian Lock Standard AS4145.2: 1993.
• Supplied less cylinder.
• Mortice lock can be converted from escape function to combination function by simple manipulation of hub snib.
• Fire rated.
• Finished in satin chrome.

LWLC8810:
• Ensures unbroken transfer of wires between door and frame.
• Suits 90 to 120 degree opening doors.
• Maximum cable diameter is 8 mm.
• Concealed when the door is shut.
• Fits timber or aluminium doors.
• Overall length 323 mm.
• Chrome plated finish.
• Fire rated 4 hours according to AS1905.1-1997 and BS476: Part 22: 1987.
