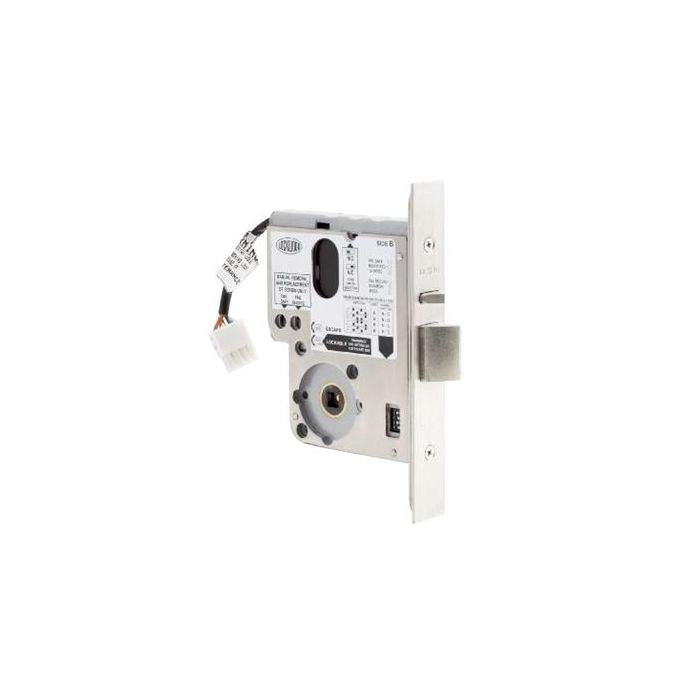

LOCKWOOD HIGH SECURITY SCEC ELECTRIC M/LOCK 60MM B/SET MON KOM 12-24VDC 5YR 3579HSELMOSC
Designed and manufactured in Australia, the 3579HS series electric mortice is designed for unique applications where fail secure functionality is required externally with fail safe functionality on the inside. To achieve this function the lock must be used in conjunction with an electric strike.
The 3579HS is constructed from the same material as the 3579 counterpart.
For use in high security government, institutional and commercial projects, the 3579 Series Mortice Lock has been successfully SCEC endorsed for secure area applications.
The Lockwood 3579 Series Cylinder Mortice Lock has been successfully fire tested up to 4 hours on fire door assemblies in accordance with Australian Standard AS 1905.1 - 2005, Part 1: Fire Resistant Doorsets.
To achieve secure area rating, the 3579 Mortice Lock must also:
• Be fitted with a SCEC endorsed 570 oval cylinder which is also secure area rated, e.g ABLOY PROTEC.
• Be fitted with full plate furniture including Lockwood 1800 Series, 2800 Series and Artefact Series II
Key Features
Designed with flexibility in mind, the one lock can cover all functions and is easily configured on site for the required application.
• Stainless Steel Latch and Faceplate
• Stainless steel plates that encapsulate the body against attempted vandalism
• Available in Monitored versions only
Monitoring Features
• Dead latched and Locked
• Door position/Reed switch
• Dual key override monitoring
• Request to exit/REX
• LED indication
Field Changeable Settings
• Fail safe/fail secure configuration.
• Multi-voltage - will work on 12-24 VDC systems
• Handing - left hand and right hand doors
• Selection of free lever or locked lever on both sides of the door
• Key override monitoring either side of the door
• Monitoring contacts – normally closed, normally closed
Note: this lock is designed to operate in conjunction with an electric strike. The lock will never unlock electrically from the external side.
| VOLTAGE | 12VDC - 24VDC Operating Voltage |
| CURRENT | 500mA (max) 80mA holding @ 12VDC 275mA (max) 50mA holding @ 24VDC |
| LED CURRENT | When LED’s are fitted, add 15mA (max) to total current draw |
| MONITORING | Dual Key override Deadlatched Locked Door closed Request to exit Microswitches: 500mA (max) @ 30VDC each circuit Reedswitch: 100mA (max) @ 30VDC |
| ENVIROMENT | Operational temperature range -20c to + 60c |
| CASE/COVER | High purity Zinc alloy construction with Stainless Steel plates |
| BACKSET | 60mm standard, 89 & 127mm available |
| LATCH BOLTS | Reversible with Stainless Steel construction |
| DOOR CLEARANCE | 3 - 6.5mm |
| DOOR THICKNESS | Standard applications 32 to 50mm |
| CYLINDER | Standard Lockwood oval shaped cylinders |
| CABLING | 1.6 metre length of cable with 12 pin socket supplied with each lock. Recommended cable: 18AWG (0.82mm²) cable runs up to 30m |
| FURNITURE | Compatible with Lockwood series door furniture |
| STANDARD FINISHES | Satin Chrome (SC) standard |
| STANDARDS AND COMPLIANCE | SL8 - Australian Lock Standard (AS4145.2.2008) (when used with equivalent security level keying system) D8 - (Durability) Australian Lock Standard (AS4145.2.2008) Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets) C-Tick Certified SCEC Endorsed for SL3 Medium Threat Level Areas |
