Type
E-TTL II/E-TTL autoflashShoe-mount Speedlite Compatible cameras
Type-A EOS cameras (E-TTL II/E-TTL autoflash)* Autoflash is not possible when using Type-B EOS cameras.
Guide No
Approx. 43/141.1 (at 105 mm flash coverage, ISO 100, in meters/feet)* Without color filter or bounce adapter Flash Coverage
Supports a shooting angle of view with a lens focal length of 24-105 mm (with wide panel use: 14 mm)• Automatic setting (Automatically sets the flash coverage depending on the shooting angle of view and the image sensor size.)• Manual setting Bounce
90° up, 150° left, 180° rightBounce adapter provided can be used Flash duration
Normal flash: Approx. 1.8 ms or less, Quick flash: 2.3 ms or less Color temperature
Yes (lens shift-type), approx. 3.5-stop [13]. information transmission
Intelligent IS with 5-axis Advanced Dynamic IS Color filter
Color filter provided can be used
Exposure control system
E-TTL II/E-TTL autoflash, manual flash Effective flash range (with EF50mm f/1.4 lens at ISO 100)
Normal flash: Approx. 0.7 - 23.6 m / 2.3 - 77.4 ft.Quick flash: Approx. 0.7 - 13.6 m / 2.3 - 44.6 ft. (at Guide No. 19.1/62.7, in meters/feet)High-speed sync: Approx. 0.7 -12.8 m / 2.3 - 42.0 ft. (at 1/250 sec.) Flash exposure compensation
±3 stops in 1/3- or 1/2-stop increments FE lock
Possible with the camera's Multi-function button or FE lock/AE lock buttons High-speed sync
Possible* During radio transmission wireless shooting, high-speed sync is possible only with EOS DIGITAL cameras released in and after 2012 (except with EOS 1200D) Manual flash
1/1 - 1/128 power (1/3-step increments) Modeling flash
Fired with camera's depth-of-field preview button or Speedlite's test flash button
Firing interval (Recycling time)
Normal flash: Approx. 0.1 - 3.5 sec.,Quick flash: Approx. 0.1 - 2.5 sec.* When using AA/LR6 alkaline batteries Flash-ready lamp
Lights up in red: normal flash availableLights up in green: Quick flash available
Emission method
Switchable in Personal Functions between Intermittent flashes (a series of small flashes) and Infrared AF-assist beam Emitting small series of flashes
Supported during viewfinder shooting, and Quick mode during Live View shooting or movie shootingEffective distance: At center: Approx. 0.7 - 4 m / 2.3 - 13.1 ft.At periphery: Approx. 0.7 - 3.5 m / 2.3 - 11.5 ft. Infrared AF-assist beam
Center AF point in viewfinder supportedEffective distance: Approx. 0.7 - 8 m / 2.3 - 26.2 ft.
Connection method
Optical pulse Wireless settings
Slave Channel
Ch. 1 - 4 Slave unit setting
Firing group A, B, C Reception angle
±40° horizontally and ±30° vertically, facing the master unit Slave flash charge indication
AF-assist beam emitter blinks and flash-ready lamp lights up on the slave unit
Custom Functions
10 types Personal Functions
430EX III-RT: 8 types / 430EX III: 6 types
Frequency
2405 MHz - 2475 MHz Modulation system
Primary modulation: OQPSK,Secondary modulation: DS-SS Wireless settings
Master/slave Channel
Auto, Ch. 1 - 15 Wireless radio ID
0000 - 9999 Slave unit control
Up to 5 groups (A, B, C, D, E), up to 15 units Slave unit setting
Firing group A, B, C, D, E Transmission distance
Approx. 30 m / 98.4 ft.* When there are no obstacles or obstructions between the master and slave units with no radio interference with other devices* Transmission distance may be shorter depending on the relative positions of the units, surrounding environment, weather conditions, etc. Flash ratio control
1:8 - 1:1 - 8:1, 1/2-step increments Slave flash charge confirmation
Flash ready icon lights up on the master unit's LCD panel, AF-assist beam emitter blinks and flash-ready lamp lights up on the slave unit Linked shooting
Possible
Speedlite power source
Four AA/LR6 alkaline batteries* AA/HR6 Ni-MH batteries can be used Battery life (number of flashes)
Approx. 180 - 1200 times* When using AA/LR6 alkaline batteries Radio transmission wireless shooting time
Approx. 9 continuous hours* When Master flash firing OFF, using AA/LR6 alkaline batteries Auto power off
Power off after approx. 90 sec. of idle operation* When set as radio transmission wireless master unit, or in linked shooting: approx. 5 min.* When set as slave unit: approx. 60 min.
Dimensions (W x H x D)
Approx. 70.5 x 113.8 x 98.2 mm / 2.78 x 4.48 x 3.87 in. Weight
430EX III-RT: Approx. 295 g / 10.41 oz.,430EX III: Approx. 290 g / 10.23 oz.(Speedlite only, excluding batteries)
Working temperature range
0 °C - 45 °C / 32 °F - 113 °F Working humidity
85 % or less

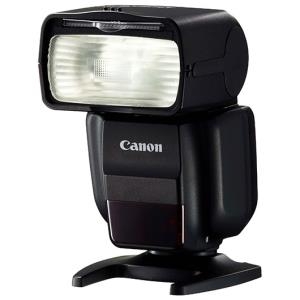

Speedlite 430EX III RT
All specifications above are based on Canon's testing standards.Product specifications and the exterior are subject to change without notice.
