AJAX COMBIPROTECT FIBRA BLACK 2YR 44390.06.BL1
Single device. Dual protection

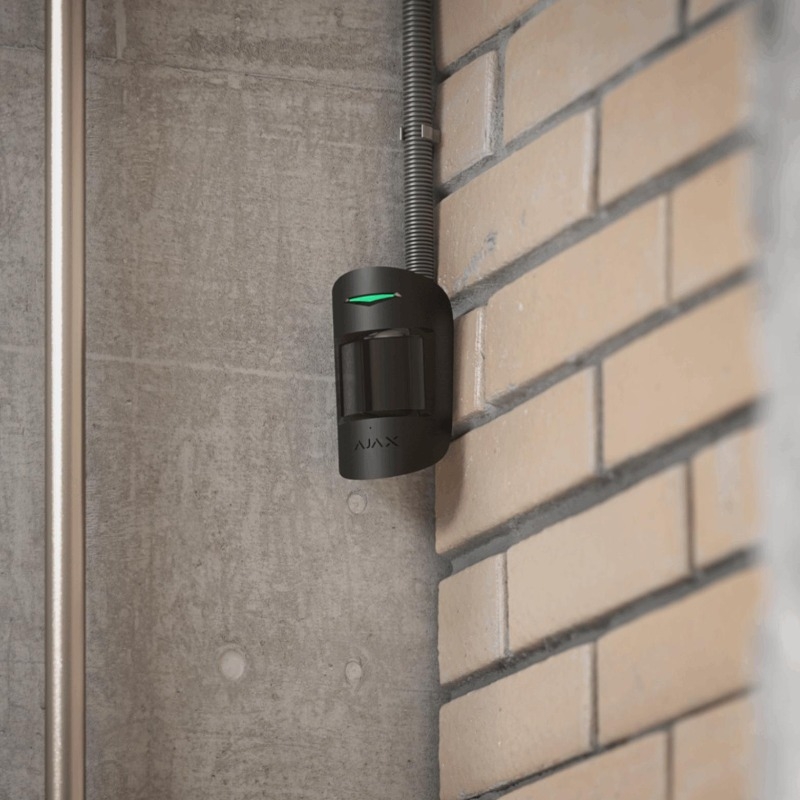

We have combined the functions of our two detectors and created a universal security solution for different types of objects — CombiProtect Fibra. The device features software algorithms to prevent false alarms and has two primary functions — motion detection and glass break detection. Both sensors can be remotely configured in the app, as well as the required sensitivity level. It is also possible to test the device via the app. The intuitive interface and hassle-free installation create a satisfying PRO and end-user experience.
PIR sensor
All Ajax motion detectors use PIR sensors by Excelitas Technologies — a field-leading American manufacturer specializing in designing and producing optronic components since 1931. Ajax Systems constantly proves the sensor’s superior quality at the production stage: we test 100% of manufactured devices. Wrapped into Ajax technologies, it brings the utmost accuracy of intrusion detection.
Enhanced glass break detection
CombiProtect Fibra uses a sensitive electret microphone and the DualTone digital algorithm to detect the sound of glass breaking. To register a glass break and report an alarm, the device must detect a dull (low-frequency) sound of an impact and a ringing (high-frequency) sound of glass breaking in 1.5 seconds. Such a two-stage glass break detection algorithm decreases the risk of false alarms. Three sensitivity levels can be configured in the Ajax app, making the detector suitable for any object.
Unique wired technology
An Ajax system uses secure two-way communication based on Fibra proprietary protocol. It features encryption and device authentication to prevent sabotage, spoofing, and data theft. Fibra lines are versatile and support connecting different types of devices to one line: sirens, keypads, and detectors with photo verification.
| Sensitive element | 1 x PIR sensor, 1 x electret microphone |
| Motion detection distance | up to 12 m |
| Motion detection angle | horizontal: 88.5° |
| Motion detection speed | from 0.3 to 2 m/s (The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.) |
| Sensitivity PIR | 3 levels |
| Pet immunity | weight:up to 20 kg, height:up to 50 cm |
| False alarm prevention PIR | SmartDetect Software algorithm. |
| Temperature compensation | Effective motion detection at temperatures from −10 °C to +40 °C. |
| Glass break detection distance | from 0.3 to 9 m, horizontal: 180° |
| Sensitivity Glass break | 3 levels |
| False alarm prevention Glass break | DualTone |
| Minimum glass size | 400 × 400 mm, Detection distance is up to 9 m for all glass types when the High sensitivity level is selected. |
| Type of glass and its thickness: | standard pane — 4 mm, insulated glass — 4 mm, tempered glass — 6 mm |
| Power supply | Fibra line power supply (5−30 V⎓, up to 26 mW) |
| Line connection | 4-core cable |
| Fibra line length | up to 2,000 meters (When using the U/UTP cat.5 twisted pair.) |
| Dimensions Detector | 110 × 65 × 50 mm |
| Weight Detector | 92 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Protection class | IP50 |
| Warranty | 24 months |
