AJAX MOTIONPROTECT FIBRA WHITE 2YR 44405.09.WH1

SKU
432285
Brand
MPN
44405
Warranty
Standard Manufacturer's Warranty
Availability
In stock
Freight Estimate
Special Price $94.00 Regular Price $108.00
Buy Now And Earn 94 Reward Points!

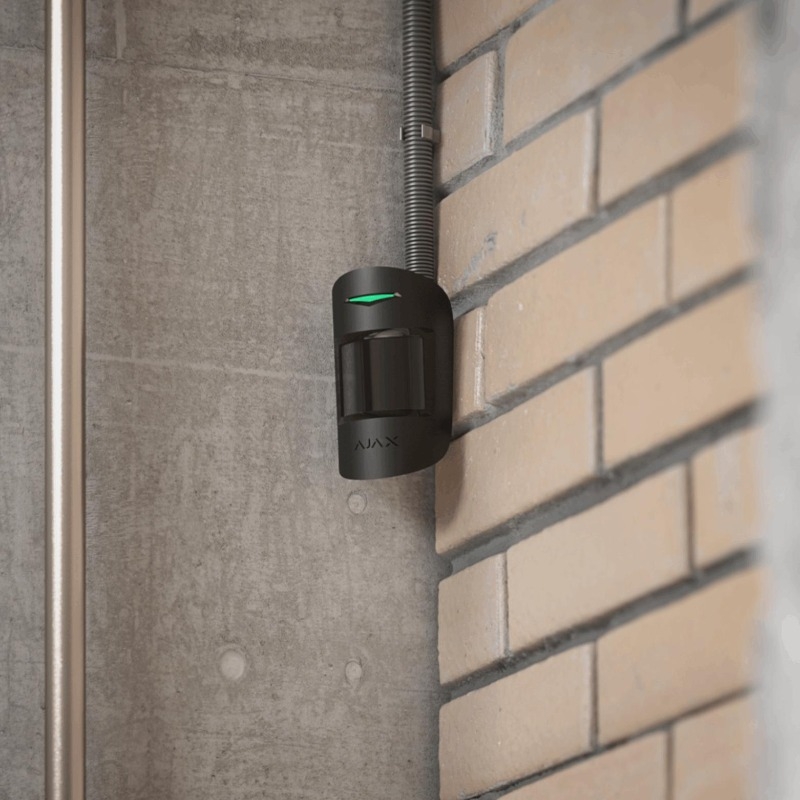

MotionProtect Fibra is a wired IR motion detector. It is a vital security system component, so we have engineered this device to deliver unparalleled reliability and user convenience. Its cutting-edge hardware and software algorithms minimize false alarms to nearly zero. With a modern design, MotionProtect Fibra is seamlessly integrated into any environment. The SmartBracket mounting panel simplifies installation, while configuration in the app eliminates the need for engineers to make on-site visits to resolve minor requests.

The Ajax system uses secure two-way communication based on the Fibra proprietary protocol. It features block encryption and device authentication to prevent sabotage, spoofing, or data theft. Fibra lines are multifunctional and support connecting different types of devices to one line: sirens, keypads, and detectors with photo verification.

The Fibra communication requires minimum power consumption, with the detector consuming only up to 0.045 W at its peak. This low power consumption allows installers to connect multiple devices to a single Fibra line, extending wired connectivity.

Fibra operates on the TDMA principle. Each device has a short time frame for exchanging data with a hub, and its communication module remains inactive the rest of the time. This significantly reduces power consumption and helps avoid interferences even when multiple devices communicate simultaneously.

Sensing element 1 × PIR sensor
Motion detection distance up to 12 meters (When installed at 2.4 meters height.)
Motion detection angles horizontal — 88.5°
Motion detection speed from 0.3 to 2.0 m/s
Sensitivity 3 levels
Pet immunity up to 20 kg, up to 50 cm height
Temperature compensation Effective motion detection within −10°C to +40°C range.
Power supply Fibra line power supply (5−30 V⎓, up to 25 mW)
Line connection 4-core cable
Fibra line length up to 2,000 meters (When using the U/UTP cat.5 twisted pair.)
Dimensions 110 × 65 × 50 mm
Weight of the white device 88 g
Weight of the black device 75 g
Operating temperature range from −10 °C to +40 °C
Operating humidity up to 75%
Protection class IP50, IK04
Warranty 24 months
AJAX MOTIONPROTECT FIBRA WHITE 2YR
