Startech 4x4 Hdmi Matrix Video Switch Splitter With Audio And Rs232 - 4x1 Hdmi Video Switch -
QUICK OVERVIEW

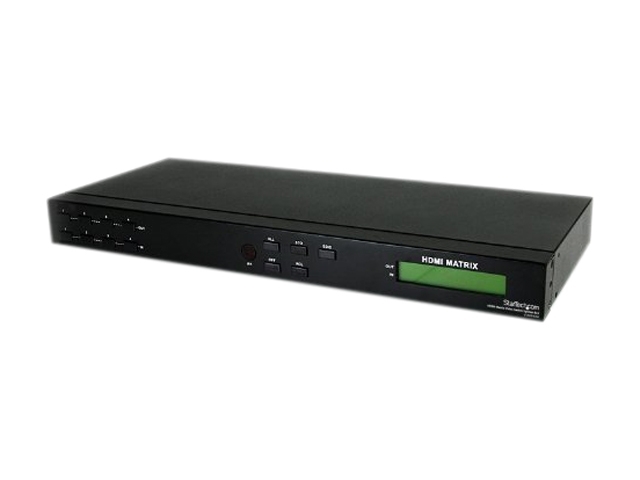

With four HDMI inputs and four HDMI outputs, the StarTech VS440HDMI 4x4 Matrix Video Switch/Splitter lets you select up to four distinct HDMI or DVI sources (using HDMI to DVI adapters, not included), with audio, between four independent displays or projectors.
A compact, centralized solution for managing multiple sources and displays, this unit allows each input and output to be selected individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several, offering the maximum flexibility. This allows trainees/students to see what is on your display, and then switch them back to their own display after the demonstration completes. Switching can be performed via the front panel push-buttons, RS-232 PC port, or IR remote. You can also store the inputs/outputs relationship as profiles for quick recall. This switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
-
EASY SWITCHINGFront panel push-buttons, an RS-232 PC port, and an IR remoteare included for simple control and flexible switching options. A front panel LCD display allows for easy status monitoring. -
AUDIO SUPPORTFor a complete multimedia experience. -
HIGH RESOLUTION SUPPORTSupports resolutions up to 1920x1080/1080p for sharp, crisp images. -
STRORAGE FOR FOUR PROFILESThe included software allows storage of up to four distinct display combinations. -
EDID SUPPORTAllows the video source to output the most matched signal to the video display to achieve the maximum resolution and display compatibility.
| Connector(s) | |
| Connector A | HDMI (19 pin) Female |
| Connector B | HDMI (19 pin) Female |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Female |
| Environmental | |
| Humidity | 0~95% |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Audio | Yes |
| Cabling | HDMI |
| Ports | 4 |
| Rack-Mountable | Yes |
| Packaging Information | |
| Shipping (Package) Weight | 3.1 kg [6.9 lb] |
| Performance | |
| Bandwidth | 225MHz |
| Maximum Cable Length | 10 m [32.8 ft] |
| Supported Resolutions | 1920x1200 or 1080p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 42 mm [1.7 in] |
| Product Length | 440 mm [17.3 in] |
| Product Weight | 2.4 kg [5.2 lb] |
| Product Width | 185 mm [7.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | HDMI Matrix Selector Switch |
| Instruction Manual | |
| IR Remote Control | |
| Rack Mount Brackets | |
| RS232 Cable | |
| Screws for rack mount brackets | |
| Software Installation CD | |
| Universal Power Adapter (US/UK/EU/AU) | |
The VS440HDMI 4x4 HDMI® Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.
The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
