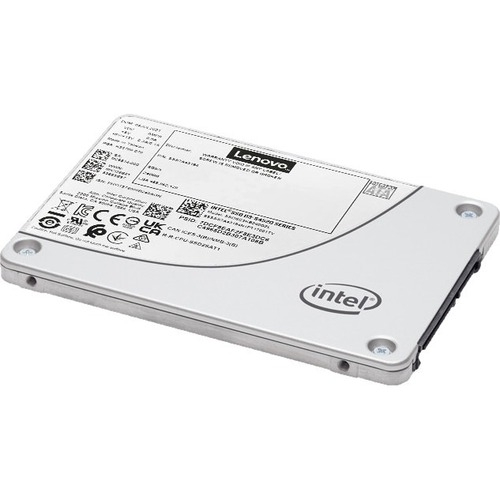

Lenovo THINKSYSTEM 2.5 54520 1.92TB READ 4XB7A17103
THINKSYSTEM 2.5 54520 1.92TB READ
The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.
This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.
Compared with the S4510 series, these new Read Intensive (Entry) drives offer improved endurance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
- 2.5-inch drives in multiple form form factors
- Cost-effective Intel 3D NAND TLC Flash Memory
- Endurance of up to 3 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
- High reliability and enhanced ruggedness
- Energy savings, with typical write power consumption as low as 2.3 W per drive
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Full end-to-end data path protection
| Wireless LAN | No |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Storage Capacity | 1.92 TB |
| Encryption Standard | 256-bit AES |
| Compatibility |
|
| Device Supported | Server |
| Storage System | |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| EU WEEE |
| Hot Swappable | Yes |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 7 mm |
| Width | 70 mm |
| Depth | 100 mm |
| Maximum Read Transfer Rate | 550 MB/s |
| Maximum Write Transfer Rate | 510 MB/s |
| Random 4KB Read | 91000IOPS |
| Random 4KB Write | 38000IOPS |
| Endurance (DWPD) | 2.5 |
| Endurance (TBW) | 9011.20 TB |
| Endurance Type | Read Intensive |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A17103 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem S4520 Read Intensive SATA 6Gb SSDs |
| Product Series | S4520 |
| Brand Name | Lenovo |
