Lenovo THINKSYSTEM 440-16E SAS/SATA PCIE G4 12GB HBA 4Y37A09724
SKU
402050
Brand
MPN
4Y37A09724
Warranty
Standard Manufacturer's Warranty
Availability
In stock
$630.00
Buy Now And Earn 630 Reward Points!

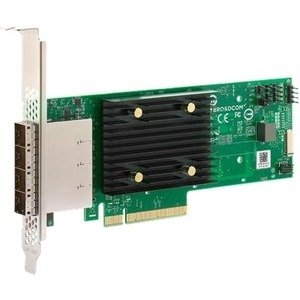

THINKSYSTEM 440-16E SAS/SATA PCIE G4 12GB HBA
The Lenovo ThinkSystem 440-16e SAS/SATA 12Gb HBA is a high performance PCIe 4.0 host bus adapters for external storage connectivity in ThinkSystem servers. The adapter provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.
Memory
| Cache Memory | No |
Physical Characteristics
| Form Factor | Plug-in Card |
General Information
| Product Type | SAS Controller |
| Manufacturer Part Number | 4Y37A09724 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 440-16e |
| Product Name | ThinkSystem 440-16e SAS/SATA PCIe Gen4 12Gb HBA |
| Brand Name | Lenovo |
Interfaces/Ports
| Total Number of SAS Ports | 4 |
| Number of SAS Ports (External) | 4 |
| SAS Connector Details | Four external x4 HD Mini-SAS connectors (SFF-8644) |
Technical Information
| Host Interface | PCI Express 4.0 x8 |
| Device Supported | Server |
| RAID Levels | JBOD |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
