AJAX LINESPLIT FIBRA 2YR 57204.170.NC1
LineSplit Fibra

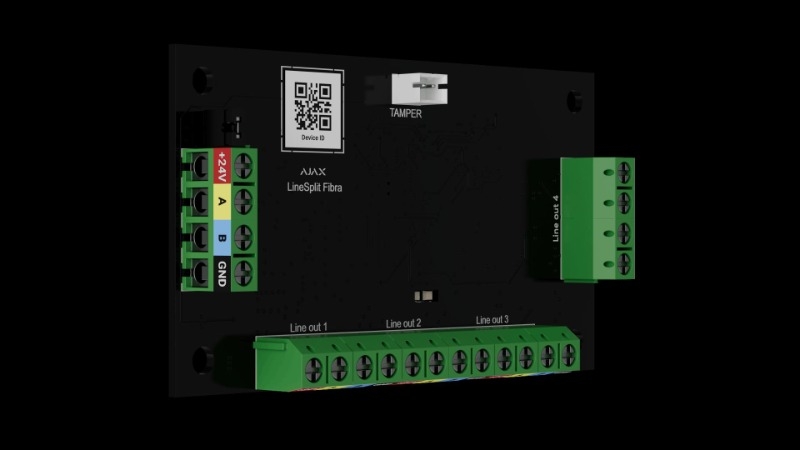

Module to split one Fibra line into four lines
Design security systems freely with LineSplit Fibra
LineSplit brings a new level of flexibility into the installation process. There is no need to replace wiring if you want to replace an outdated security system with Ajax. The module can be installed at any point of the Fibra line (even after another LineSplit(1)).
It splits one Fibra line into four and extends each one of them by 2,000 m(2). LineSplit inherits all the advantages of Ajax smart devices: it is easy to control the module from the app, receive event notifications, and configure or test LineSplit remotely.
Unique wired technology
Fibra is a protocol to ensure fast and secure two-way wired communication between the hub and connected devices. Fibra delivers instant data-rich notifications: security companies and users know which device was triggered, when, and where it happened.
| Number of output lines | 4 - Several Fibra devices can be connected to one line. The number of devices depends on their energy consumption. |
| Number of input lines | 1 |
| Power supply | Fibra line power supply (6−30 V⎓, up to 25 mW) |
| Line connection | 4-core cable |
| Fibra line length | up to 2,000 meters (When using the U/UTP cat.5 twisted pair.) |
| Dimensions | 90 × 50 × 15 mm |
| Weight | 34 g |
| Operating temperature range | from −10 °C to +40 °C |
| Operating humidity | up to 75% |
| Warranty | 24 months |
