AJAX KEYPAD TOUCHSCREEN WIRELESS BLACK 2Y 58468.148.BL3
SKU
432309
Brand
MPN
58468
Warranty
Standard Manufacturer's Warranty
$499.00
Buy Now And Earn 499 Reward Points!

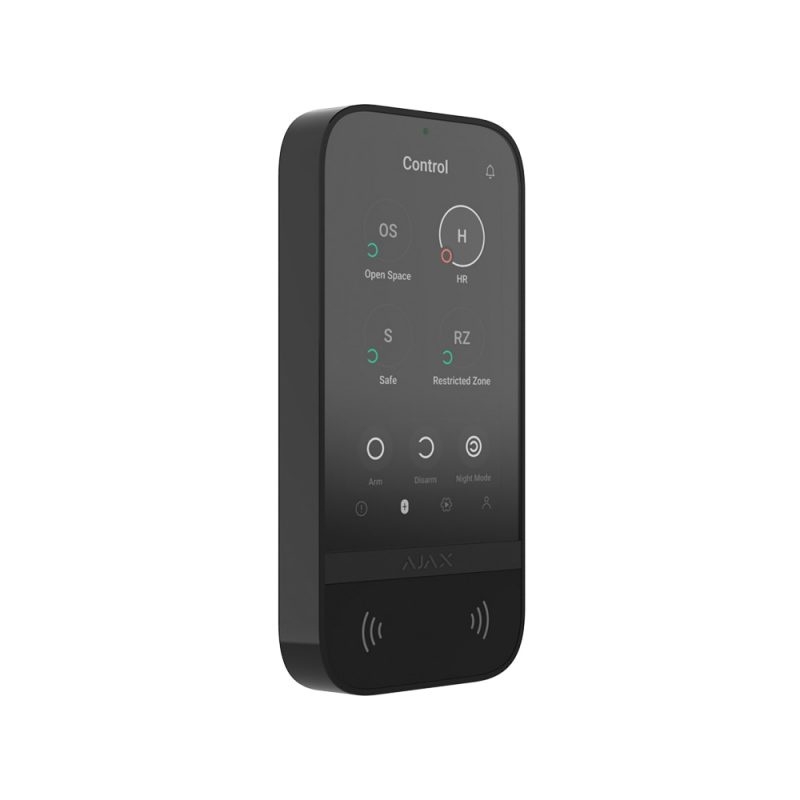

Wireless keypad with touch screen to control an Ajax system
KeyPad TouchScreen combines security and smart home device management. With an intuitive interface, multiple language options, and smartphone-like familiarity, it's easy to use. The large display, DESFire technology, and code options ensure a secure and efficient experience.
Two power options
Up to 1.5 years of operation on batteries
External power supply 12 V⎓ + batteries as a backup power source
Configurable panic buttons
Communication range with an Ajax hub Up to 1,700 m
Grade 2 (EN 50131)
PD 6662:2017
| Display | 5", IPS Matrix, 480 x 854 Resolution |
| Sensor type | Capacitive touch |
| Backlight lifetime | 30,000 hours - Guaranteed backlight lifetime when the Always Active Display toggle is enabled. It can be adjusted in Ajax apps and activates only when external power is connected. |
| User interface | Dark and Light modes |
| Key features | Panic buttons, Control, Contactless access, Arm without code, Group managment, Scenario managment, Auto screen wakeup, Remote firmware update |
| Control | Codes, Pass codes, Tag key fobs |
| Access via DESFire® | EV1, EV2 - The technology is based on the ISO 14443 international standard and combines 128-bit encryption and copy protection. |
| Maximum codes | up to 200 personal codes. One code per each user. The number of personal access codes depends on the hub model. |
| Keypad codes | One code per KeyPad. |
| Duress codes | up to 200 personal codes. One code per each user. The number of personal duress codes depends on the hub model. |
| Keypad Duress codes | One code per KeyPad. |
| Codes for unregistered people | up to 99 personal codes. For people who are not registered in the system. The number of such codes depends on the hub model. |
| Sabotage protection | Protection against code guessing. KeyPad locks for 3–180 minutes if an incorrect code is entered more than 3 times in a row within 1 minute. |
| Communications range | up to 1,700 m |
| External Power option | 10.5V–14 V DC - Recommended electrical parameters for the power supply unit are: 12 V DC with a current of at least 0.5 A. |
| Battery | 6 x AA |
| Calculated battery life | up to 1.5 years |
| Dimensions | 172 × 82 × 26 mm |
| Weight | 327 g |
| Operating temperature range | from -10°C to +40°C |
| Operating humidity | up to 75% |
| Warranty | 24 months |
AJAX KEYPAD TOUCHSCREEN WIRELESS BLACK 2Y
