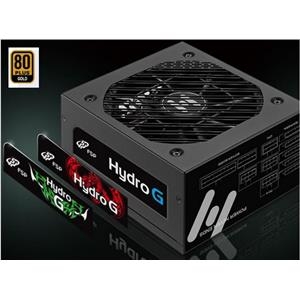

FSP 650W FSP Hydro G 80+ Gold HYDRO G 650
FSP HYDRO G 650W 80+ Gold PS2 / ATX PSU
FSP Hydro G is the world first one PSU break the rule and makes it as a standard to gamers. With three colors, it is easy to create your theme related to VGA cards.
- Unique product ID with changeable side stickers for DIY enthusiasts and gamers
- Intelligent fan speed control circuit design with 0dBA function
- Server grade circuit and advanced thermal layout design
- Complies with newest ATX12V & EPS12V standards
- High efficiency ≧ 90%
- Active PFC ≧ 99%
- High wattages with 80PLUS® gold certification
- Powerful single +12V rail design
- Advanced full modular design with ribbon cables
- 100% Japan-made E-cap
- SLI and Crossfire ready
- Quiet and long-lasting 135mm FDB fan
- Full protections: OCP, OVP, SCP, OPP, UVP, OTP
- Global safety approved
| Model No. | HG650 | ||||
| AC Input | 100-240Vac~ 8.5-4A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 25A | 25A | 54.16A | 0.5A | 3.5A |
| Max Combined Power | 150W | 650W | 6W | 17.5W | |
| Total Power | 650W @50°C | ||||
Specifications
| Model | HG650 |
| Rated Output Power | 650W |
| Form Factor | ATX12V V2.4 & EPS12V V2.92 |
| 80 PLUS Certification | Gold |
| Input Voltage | 100-240Vac (Full Range) |
| Input Current | 8.5-4A |
| Input Frequency | 50~60Hz |
| PFC | Active PFC (>0.9 typical) |
| Efficiency | >90%@ Typical Load |
| Fan Type | 135mm FDB Fan |
| Noise | < 21dBA |
| Dimensions(Lx W x H) | 150 x 170 x 86mm |
| Weight | 2460g |
| Operation Temp. | 0~50°C / 32°F~104°F |
| Protection | OCP/OVP/ SCP/ OPP/ UVP/ OTP |
| Safety Approval | CE/TUV/FCC/CCC/BSMI/RCM/KC |
FSP Hydro G is the world first one PSU break the rule and makes it as a standard to gamers. With three colors, it is easy to create your theme related to VGA cards.
Unique product ID with changeable side stickers for DIY enthusiasts and gamers
Intelligent fan speed control circuit design with 0dBA function
Server grade circuit and advanced thermal layout design
Complies with newest ATX12V & EPS12V standards
High efficiency ? 90%
Active PFC ? 99%
High wattages with 80PLUS® gold certification
Powerful single +12V rail design
Advanced full modular design with ribbon cables
