AJAX HUB HYBRID (4G) FIBRA BLACK 2YR 71459.111.BL3
Fibra is a professional product line of Ajax wired devices designed for projects. Only accredited partners who have passed specialized training can sell, install, and administer devices of this product line. Experience an array of exceptional features, cutting-edge hardware, effortless installation and more.
The synergy of wired and wireless technologies
Hub Hybrid is a game-changer among professional security systems. It is the first Ajax control panel supporting Jeweller and Fibra devices altogether. Wired and wireless technologies are combined to build complex protection regardless of facility size, steel, or concrete obstructions. Informative notifications, alarm photo verification, real-time system control from the app, and automation scenarios — all to enhance security.

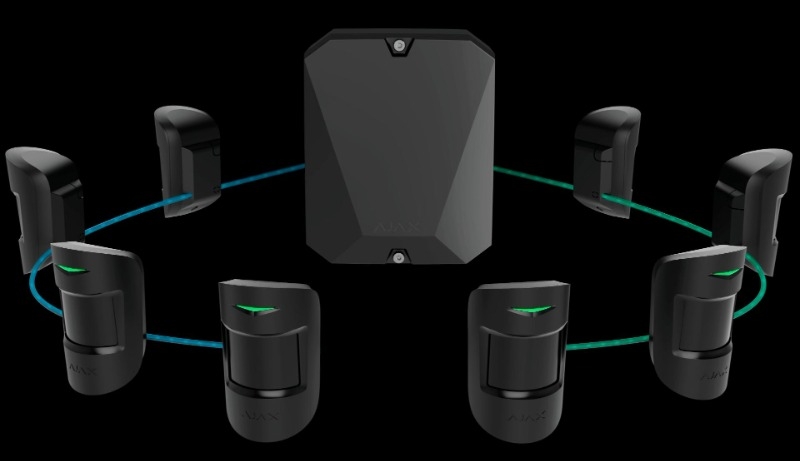

Fibra communication technology allows you to wire lines up to 2 km long. Eight lines in one system run by Hub Hybrid minimise potential damage. Even a completely broken line leaves the security system at 87% operational. And with wireless detectors, this percentage will be even higher.
| Capacity Ajax devices | up to 100 - Wired and wireless devices in any proportion, 5 range extenders max, 10 sirens or keypads with a built-in siren max. |
| Capacity Cameras or DVRs | up to 25 - RTSP support, Seamless integration with the Dahua, Hikvision, Safire, EZVIZ, Uniview IP cameras and DVRs. |
| Capacity Users | up to 50 - Any number of admin users within the limit, PRO accounts for installers and monitoring companies, Access management for regular users. |
| Automation scenarios | up to 32 |
| Security groups | up to 9 |
| Rooms | up to 50 |
| Event log | up to 1000 events - Events are saved on the non-volatile onboard flash memory. |
| Wired communication | Proprietary wired communication technology. Fibra combines the reliability of wires with the freedom of radio connection. It features: Two-way communication, Advanced anti-sabotage, Instant notifications, Remote configuration via the Ajax apps. |
| Compatible wire | 4–core cable - Bus connection. |
| Input | 8 bus lines - Compatible with Fibra devices only. |
| Bus line length | up to 2.000 m When using the U/UTP cat.5 twisted pair. |
| Power supply of devices | up to 14.4 W - For all connected wired devices. |
| Output voltage range | 23–25.1 V⎓ |
| Topologies | Star and Ring |
| Devices polling interval | from 12 to 300 s |
| Wireless communication | Jeweller communication technology |
| Radio signal range Jeweller | up to 2.000 m |
| Photo Wireless communication | Wings communication technology |
| Radio signal range Wings | up to 1.700 m |
| Ethernet | 1 × 8P8C socket - Up to 100 Mbps. |
| Cellular | 2 × micro–SIM slot |
| Supported protocols | SurGard (Contact ID), SIA (DC-09), Other proprietary protocols |
| Power supply | 110–240 V~, 50/60 Hz - From the main power supply. Up to 10 W of mains power consumption. |
| Device operating DC voltage range | 10.5–15 V⎓ From the backup battery (not included). Hub has space in the enclosure and rails for installing batteries with a capacity of 4, 7, or 9 Ah. |
| Autonomous operation | up to 60 hours |
| Dimensions | 192 × 238 × 100 mm |
| Weight | 852 g |
| Operating temperature range | from −10°C to +40°C |
| Operating humidity | up to 75% |
| Protection class | IP30 |
| Warranty | 24 months |
