Lenovo ThinkSystem ST250 V2 1xIntel Xeon E-2356G 6C 3.2GHz 80W 1x8GB 1Rx8 SW RD 1x300W 7D8FA00XAP

Standard Manufacturer's Warranty
Preorder (Contact Us)
Freight Estimate
Buy Now And Earn 3325 Reward Points!

ThinkSystem ST250 V2 1xIntel Xeon E-2356G 6C 3.2GHz 80W 1x8GB 1Rx8 SW RD 1x300W

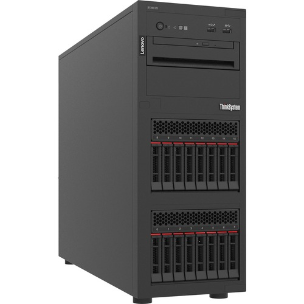

The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".

  • Gigabit Ethernet port for ultra-fast network speeds
  • Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
  • Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.20 GHz processor
  • RAID provides data reliability, fault tolerance and improves overall performance
  • 300 W power supply unit (PSU) fulfils your system's power requirements
  • 300 W power supply unit (PSU) included
  • With 8 GB memory, improve system performance to execute complex applications
Guides & Documents
Network & Communication
Ethernet TechnologyGigabit Ethernet
Optical Drive TypeDVD-Writer
Additional Warranty Information

Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

Chipset ManufacturerIntel
Chipset ModelC256
Controller TypeSerial ATA/600
RAID SupportedYes
Display & Graphics
Graphics Controller ManufacturerMatrox
Graphics Controller ModelG200
Graphics Memory Capacity16 MB
Physical Characteristics
Weight (Approximate)23.60 kg
Form FactorTower
Height444.5 mm
Width175.3 mm
Depth579.1 mm
Power Description
Input Voltage230 V AC
120 V AC
Power SourcePower Supply
Plug/Connector TypeC13
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Maximum Power Supply Wattage300 W
I/O Expansions
"Number of External 5.25"" Bays"1
Number of Total Expansion Bays5
"Number of 3.5"" Bays"4
Number of Total Expansion Slots4
Hot Swappable BaysYes
PCI Express x4 (Gen 3.x) Slots3
Number of LFF Bays4
PCI Express Details4x PCIe slots (x4, x16, x4, x4)
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Remote ManagementYes
Total Number of USB Ports7
Number of USB 2.0 Ports1
Number of VGA Ports1
Remote Management ControllerXClarity Controller Standard
Error CheckingECC
Maximum Memory Supported128 GB
Signal ProcessingUnregistered (Unbuffered)
Standard Memory8 GB
Memory TechnologyTruDDR4
Number of Total Memory Slots4
Number of Occupied Memory Slots1
Memory Clock Speed3.20 GHz
Cache12 MB
Processor Speed3.20 GHz
Processor TypeXeon
Processor ModelE-2356G
Processor CoreHexa-core (6 Core)
Processor ManufacturerIntel
Number of Processors Supported1
Number of Processors Installed1
General Information
Product TypeServer
Manufacturer Part Number7D8FA00XAP
Manufacturer Website Addresshttp://www3.lenovo.com/au/en
ManufacturerLenovo Group Limited
Product Model7D8FA00XAP
Product NameThinkSystem ST250 V2 7D8FA00XAP Server
Product LineThinkSystem
Product SeriesST250 V2
Brand NameLenovo
Package Contents
  • ThinkSystem ST250 V2 7D8FA00XAP Server
  • Documentation Flyer
  • Power Cord
  • Security Features
      • Power-on password
      • Administrator's Password
      • Trusted Platform Module, supporting TPM 2.0.
      • Padlock loop and Kensington Cable Slot
    Environmentally FriendlyYes
    Environmental CertificationGREENGUARD
    EPEAT Bronze
    Energy StarYes
    Operating System
    Operating System SupportedRed Hat Enterprise Linux 9.1
    Red Hat Enterprise Linux 9.2
    SUSE Linux Enterprise Server 15 SP3
    SUSE Linux Enterprise Server 15 SP4
    Windows Server 2019
    Windows Server 2022
    Red Hat Enterprise Linux 9.0
    Red Hat Enterprise Linux 8.7
    Red Hat Enterprise Linux 8.8
    Red Hat Enterprise Linux 8.4
