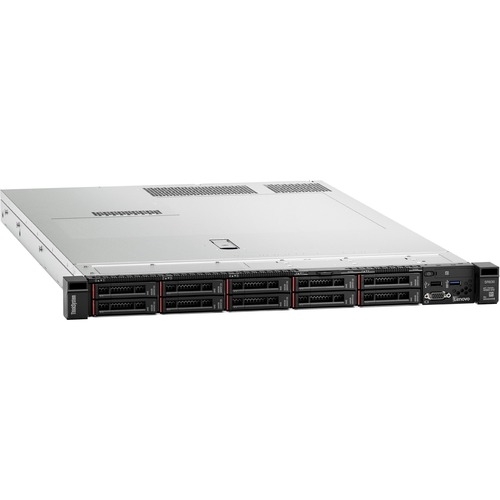

Lenovo ThinkSystem SR630 1xIntel Xeon Silver 4210 10C 2.2GHz 85W 1x32GB 2Rx4 SW RD 1x750W XCC Enterprise ThinkSystem Toolless Slide Rail Kit with 1U CMA 7X02A0HJAU
SKU
388079
Brand
MPN
7X02A0HJAU
Warranty
Standard Manufacturer's Warranty
$3,094.00
Buy Now And Earn 3094 Reward Points!
ThinkSystem SR630 1xIntel Xeon Silver 4210 10C 2.2GHz 85W 1x32GB 2Rx4 SW RD 1x750W XCC Enterprise ThinkSystem Toolless Slide Rail Kit with 1U CMA
Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Guides & Documents
-
Brochure
-
Manual
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Limited Warranty | 3 Year |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
I/O Expansions
| Riser Card | Slot 1: PCIe 3.0 x8, ML2 x8, or ML2 x16; low profile Slot 2: PCIe 3.0 x16 or x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x16; low profile Slot 4: PCIe 3.0 x8 |
| Number of Total Expansion Slots | 4 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
Physical Characteristics
| Weight (Approximate) | 18.80 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 713.7 mm |
Operating System
| Operating System | No |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP4 |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 8.4 | |
| VMware ESXi 7.0 U1 | |
| Windows Server 2019 | |
| VMware ESXi 6.7 U3 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 7.6 | |
| VMware ESXi 6.7 U1 | |
| VMware ESXi 7.0 U2 | |
| Red Hat Enterprise Linux 8 | |
| VMware ESXi 6.5 U3 | |
| VMware ESXi 7.0 U3 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2022 | |
| Windows Server 2016 | |
| VMware ESXi 6.7 U2 | |
| Red Hat Enterprise Linux 7.9 | |
| VMware ESXi 6.5 U2 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SuSE Linux Enterprise Server 15 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Red Hat Enterprise Linux 8.1 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| VMware ESXi 7.0 |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Controller Enterprise |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 3.0 |
| TÜV-GS | |
| RoHS | |
| Energy Star | Yes |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Processor
| Cache | 13.75 MB |
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4210 |
| Processor Core | Deca-core (10 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X02A0HJAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X02A0HJAU |
| Product Name | ThinkSystem SR630 7X02A0HJAU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Brand Name | Lenovo |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 24 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
