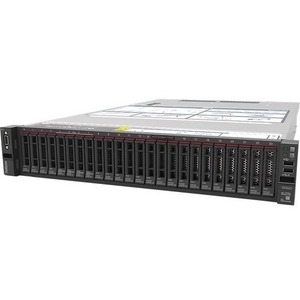

Lenovo ThinkSystem SR650, 1xIntel Xeon Silver 4210 10C 2.2GHz 85W, 1x32GB 2Rx4, RAID 930-8i 2GB Flash PCIe 12Gb Adapter, 7X06A0E3AU
SKU
378678
Brand
MPN
7X06A0E3AU
Warranty
Standard Manufacturer's Warranty
$4,661.00
Buy Now And Earn 4661 Reward Points!
QUICK OVERVIEW
1x750W, XCC Enterprise, ThinkSystem Toolless Slide Rail Kit with 2U CMA
ThinkSystem SR650, 1xIntel Xeon Silver 4210 10C 2.2GHz 85W, 1x32GB 2Rx4, RAID 930-8i 2GB Flash PCIe 12Gb Adapter, 1x750W, XCC Enterprise, ThinkSystem Toolless Slide Rail Kit with 2U CMA
Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
 |
Guides & Documents
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Limited Warranty | 3 Year |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | Up to 16 MB |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Controller Model | 930-8i |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 1 |
Physical Characteristics
| Weight (Approximate) | 32 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 718.8 mm |
Software
| Operating System | No |
| Operating System Supported | Windows Server 2019 |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 8.2 | |
| Windows Server 2016 | |
| Red Hat Enterprise Linux 7.6 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| Red Hat Enterprise Linux 8.1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| Red Hat Enterprise Linux 7.8 | |
| SUSE Linux Enterprise Server 15 SP1 |
Memory
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 24 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.93 GHz |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Processor
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4210 |
| Processor Core | Deca-core (10 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 4 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express x8 (Gen 3.x) Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | 3x PCIe x8 1x PCIe x16 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X06A0E3AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X06A0E3AU |
| Product Name | ThinkSystem SR650 7X06A0E3AU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Brand Name | Lenovo |
