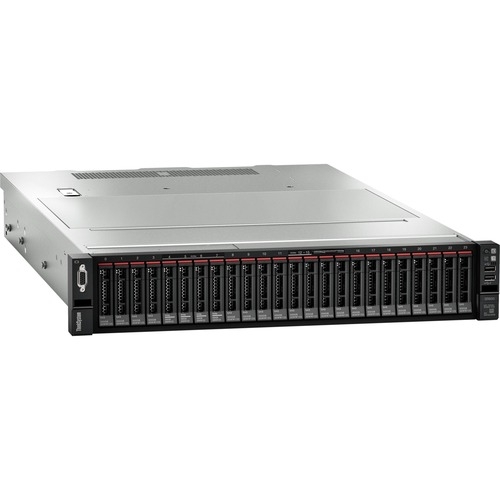

Lenovo ThinkSystem SR650, 1xIntel Xeon Silver 4208 8C 2.1GHz 85W, 1x16GB 2Rx8, RAID 530-8i PCIe 12Gb Adapter, 1x750W, XCC Enterprise, ThinkSystem Toolless Slide Rail Kit with 2U CMA 7X06A0ETAU
SKU
390964
Brand
MPN
7X06A0ETAU
Warranty
Standard Manufacturer's Warranty
$3,850.00
Buy Now And Earn 3850 Reward Points!
ThinkSystem SR650, 1xIntel Xeon Silver 4208 8C 2.1GHz 85W, 1x16GB 2Rx8, RAID 530-8i PCIe 12Gb Adapter, 1x750W, XCC Enterprise, ThinkSystem Toolless Slide Rail Kit with 2U CMA
Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
 |
Guides & Documents
-
Brochure
-
Manual
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Limited Warranty | 3 Year |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
Controllers
| RAID Levels | 0, 1, 5, 10, 50, JBOD |
| Controller Type | Serial ATA |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Controller Model | 530-8i |
Physical Characteristics
| Weight (Approximate) | 32 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 750 W |
Operating System
| Operating System | No |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP1 |
| Red Hat Enterprise Linux 9.0 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Red Hat Enterprise Linux 8.3 | |
| Windows Server 2019 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 7.7 | |
| Windows Server 2016 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.6 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| Red Hat Enterprise Linux 7.6 |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 7 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express x8 (Gen 3.x) Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | 3x PCIe x8, 1x PCIe x16 |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Enterprise |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 24 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.93 GHz |
Processor
| Cache | 11 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4208 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X06A0ETAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X06A0ETAU |
| Product Name | ThinkSystem SR650 7X06A0ETAU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Brand Name | Lenovo |
