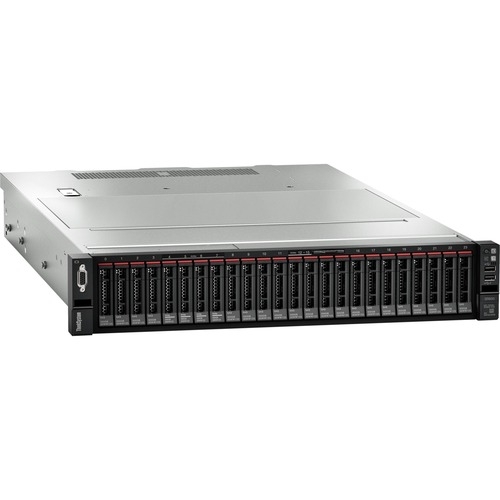

Lenovo ThinkSystem SR650 1xIntel Xeon Silver 4208 8C 2.1GHz 85W 1x16GB 2Rx8 SW RD 1x750W XCC Enterprise ThinkSystem Toolless Slide Rail Kit with 2U CMA 7X06A0PLAU
SKU
391073
Brand
MPN
7X06A0PLAU
Warranty
Standard Manufacturer's Warranty
$4,450.00
Buy Now And Earn 4450 Reward Points!
ThinkSystem SR650 1xIntel Xeon Silver 4208 8C 2.1GHz 85W 1x16GB 2Rx8 SW RD 1x750W XCC Enterprise ThinkSystem Toolless Slide Rail Kit with 2U CMA
Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
Guides & Documents
-
Brochure
-
Manual
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Limited Warranty | 3 Year |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Controllers
| Controller Type | Serial ATA |
| Serial Attached SCSI (SAS) |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| ENERGY STAR 3.0 | |
| Energy Star | Yes |
Physical Characteristics
| Weight (Approximate) | 32 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.6 |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.5 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 8.4 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8 | |
| SUSE Linux Enterprise Server 15 SP2 |
Processor
| Cache | 11 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4208 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X06A0PLAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X06A0PLAU |
| Product Name | ThinkSystem SR650 7X06A0PLAU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Brand Name | Lenovo |
I/O Expansions
| Number of External 5.25" Bays | 2 |
| Number of Internal 2.5" Bays | 24 |
| Number of Total Expansion Bays | 26 |
| Number of Total Expansion Slots | 7 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express x8 (Gen 3.x) Slots | 3 |
| Number of SFF Bays | 24 |
| PCI Express Details | 3x PCIe x8, 1x PCIe x16 |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 2 |
| Remote Management Controller | XClarity Controller Enterprise |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 24 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
