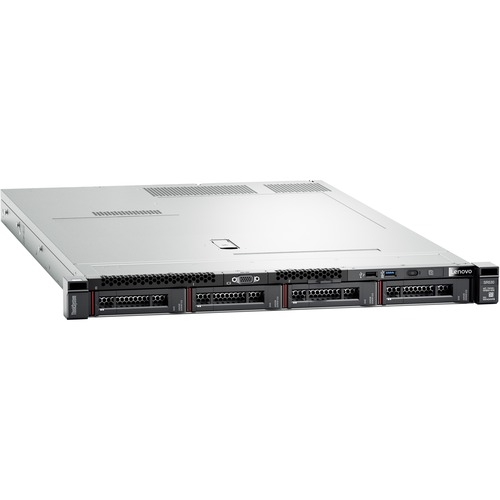

Lenovo ThinkSystem SR530 1xIntel Xeon Silver 4216 16C 2.1GHz 100W 1x32GB 2Rx4 SW RD 1x750W XCC Enterprise ThinkSystem Toolless Slide Rail Kit with 1U CMA 7X08A0BLAU
SKU
391994
Brand
MPN
7X08A0BLAU
Warranty
Standard Manufacturer's Warranty
$4,721.00
Buy Now And Earn 4721 Reward Points!
ThinkSystem SR530 1xIntel Xeon Silver 4216 16C 2.1GHz 100W 1x32GB 2Rx4 SW RD 1x750W XCC Enterprise ThinkSystem Toolless Slide Rail Kit with 1U CMA
Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
Guides & Documents
-
Brochure
-
Manual
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Limited Warranty | 3 Year |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
Controllers
| Controller Type | Serial ATA |
| Serial Attached SCSI (SAS) |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | x8 LP, x16 LP |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 3.0 |
| RoHS | |
| Energy Star | Yes |
Physical Characteristics
| Weight (Approximate) | 16 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 749.3 mm |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| Red Hat Enterprise Linux 8.5 | |
| Windows Server 2016 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SuSE Linux Enterprise Server 15 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 8.2 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 8.4 | |
| Windows Server 2019 | |
| Red Hat Enterprise Linux 7.8 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8 |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Controller Enterprise (XCC) |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 768 GB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 12 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.93 GHz |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X08A0BLAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X08A0BLAU |
| Product Name | ThinkSystem SR530 7X08A0BLAU Server |
| Product Line | ThinkSystem |
| Product Series | SR530 |
| Brand Name | Lenovo |
Processor
| Cache | 22 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4216 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
